Product Summary

The VLA517-01R is an IGBT modlue.

Parametrics

VLA517-01R absolute maximum ratings: (1)VCC, power supply voltage: 25V; (2)Iin, photo coupler input current: 25mA; (3)Ig1, forward bias output current: 4.0A; (4)Ig2, reverse bias output current: 4.0A; (5)VISO, isolation voltage: 2500Vrms; (6)Topr, operation temperature: -25 to 60℃; (7)Tc, case temperature: -25 to 85℃; (8)Tstg, storage temperature: -25 to 125℃.

Features

VLA517-01R features: (1)Number of Pins 15; (2)Polarity N-Channel; (3)RoHS Compliant.

Diagrams

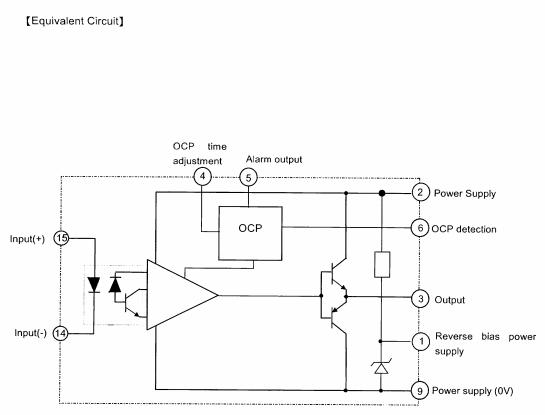

VLA517-01R equivalent circuit

VLA500-01
VLA500-01

IC IGBT GATE DVR/DC-DC CONV 12A
Data Sheet
0-1: $26.20
1-10: $24.50
10-100: $21.24
100-250: $19.82
250-500: $18.83
500-1000: $18.12
1000-2500: $17.56
2500-5000: $16.99
