Product Summary
The TXS0104EZXUR is a 4-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. The TXS0104EZXUR allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
Parametrics
TXS0104EZXUR absolute maximum ratings: (1)VCCA, Supply voltage range: -0.5 to 4.6V; (2)VCCB, Supply voltage range: -0.5 to 6.5V; (3)VI, Input voltage range, A port: -0.5 to 4.6V; VB port: -0.5 to 6.5; (4)Voltage range applied to any output in the high-impedance or power-off state, Vo, A port: -0.5 to 4.6V; B port: -0.5 to 6.5A ; (5)VO, Voltage range applied to any output in the high or low state, port: -0.5 to VCCA + 0.5V; VB port: -0.5 to VCCB + 0.5V; (6)IIK, Input clamp current, VI < 0: -50mA; (7)IO, KOutput clamp current, VO < 0: -50mA; (8)IO, Continuous output current: ±50mA; (9)Continuous current through VCCA, VCCB, or GND: ±100mA.
Features
TXS0104EZXUR features: (1)1.65 V to 3.6 V on A Port and 2.3 V to 5.5 V on B Port (V CCA ≤ V CCB); (2)No Power-Supply Sequencing Required VCCA or VCCB Can Be Ramped First; (3)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (4)ESD Protection Exceeds JESD 22 (A Port), 2000-V Human-Body Model (A114-B); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101); (B Port), 15-kV Human-Body Model (A114-B); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101); (5)IEC 61000-4-2 ESD, ±8-kV Contact Discharge; ± 10-kV Air-Gap Discharge.

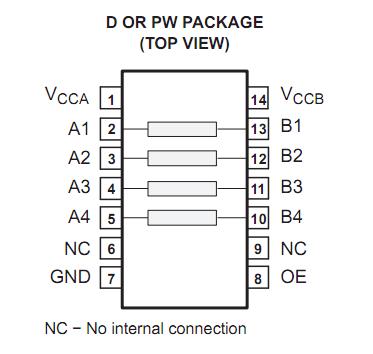

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

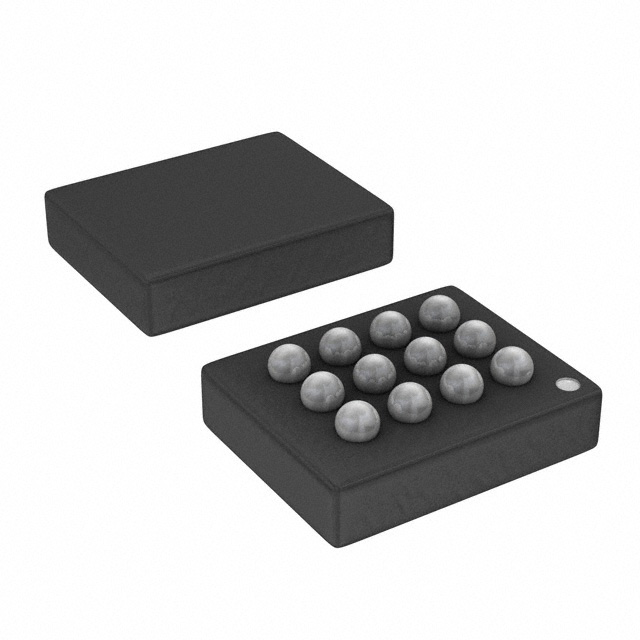

 TXS0104EZXUR |
Texas Instruments |
Translation - Voltage Levels 4B Bidirec Vltg- Level Translator |
Data Sheet |
|
|
||||||||||||
