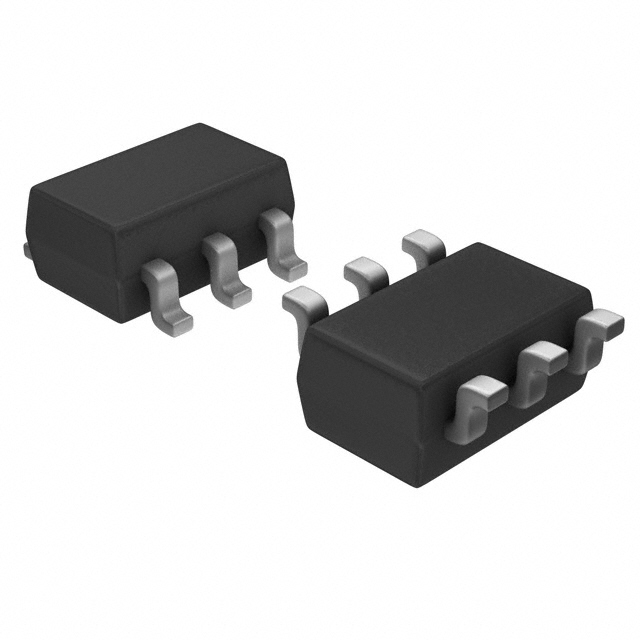

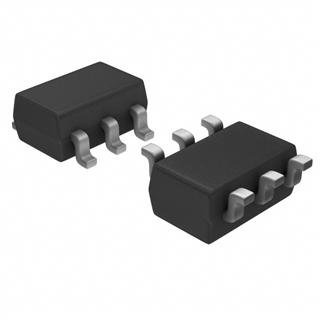

Product Summary

The TXB0101DBVR is a 1-bit bidirectional voltage-level translator. The Ioff circuitry of the TXB0101DBVR disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor of the TXB0101DBVR is determined by the current-sourcing capability of the driver. NanoFree-package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Parametrics

TXB0101DBVR absolute maximum ratings: (1)VCCA, Supply voltage range: –0.5 to 4.6V; (2)VCCB, Supply voltage range: –0.5 to 6.5V; (3)VI Input voltage range: –0.5 to 6.5 V; (4)VO, Voltage range applied to any output in the high-impedance or power-off state: –0.5 to 6.5 V; (5)IIK, Input clamp current VI < 0: –50 mA; (6)IOK, Output clamp current VO < 0: –50 mA; (7)IO, Continuous output current: ±50 mA; (8)Tstg Storage temperature range: –65 to 150 ℃.

Features

TXB0101DBVR features: (1)Available in the Texas Instruments NanoFree TM Package; (2)1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port; (3)VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State; (4)OE Input Circuit Referenced to VCCA; (5)Low Power Consumption, 5-mA Max Icc; (6)Ioff Supports Partial-Power-Down Mode Operation; (7)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

Diagrams

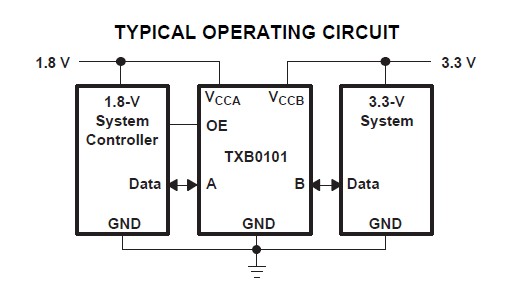

TXB0101DBVR block diagram
