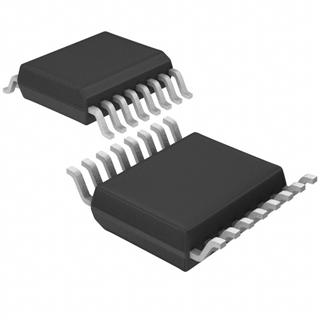

TS5V330DBQR

Product Summary

The TS5V330DBQR is a quad SPDT widebandwidth video switch. The TS5V330DBQR is a 4-bit 1-of-2 multiplexer/demultiplexer with a single switch-enable (EN) input. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer. Low differential gain and phase make this switch ideal for composite and RGB video applications. The TS5V330DBQR has wide bandwidth and low crosstalk, making it suitable for high-frequency applications as well.

Parametrics

TS5V330DBQR absolute maximum ratings: (1)voltage range, VCC: -0.5 V to 7 V; (2)Control input voltage range, VIN: -0.5 V to 7 V; (3)Switch I/O voltage range, VI/O: -0.5 V to 7 V; (4)Control input clamp current, IIK (VIN < 0): -50 mA; (5)I/O port clamp current, II/OK (VI/O < 0): -50 mA; (6)ON-state switch current, II/O: ±128 mA; (7)Continuous current through VCC or GND terminals: ±100 mA; (8)Package thermal impedance,θJA: D package: 73℃/W; DBQ package: 90℃/W; PW package: 108℃/W; RGY package: 39℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TS5V330DBQR features: (1)Low Differential Gain and Phase(DG = 0.64%, DP = 0.1 Degrees Typ); (2)Wide Bandwidth (BW = 300 MHz Min); (3)Low Crosstalk (XTALK = -63 dB Typ); (4)Low Power Consumption(ICC = 3 μA Max); (5)Bidirectional Data Flow, With Near-Zero Propagation Delay; (6)Low ON-State Resistance (ron = 3Ω Typ); (7)VCC Operating Range From 4.5 V to 5.5 V; (8)Ioff Supports Partial-Power-Down Mode Operation; (9)Data and Control Inputs Provide Undershoot Clamp Diode; (10)Control Inputs Can Be Driven by TTL or5-V/3.3-V CMOS Outputs; (11)Latch-Up Performance Exceeds 100 mA PerJESD 78, Class IID ESD Performance Tested Per JESD 22, 2000-V Human-Body Model(A114-B, Class II); 1000-V Charged-Device Model (C101)D Suitable for Both RGB andComposite-Video Switching.
