Product Summary
The TS5A23157DGSR is a dual, single-pole, double-throw(SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital andanalog signals, and signals up to 5.5V (peak) can be transmitted in either direction. The applications of the TS5A23157DGSR include Sample-and-Hold Circuit, Battery-Powered Equipment, Audio and Video Signal Routing, Communication Circuits.
Parametrics
TS5A23157DGSR absolute maximum ratings: (1)Supply voltage range, V+: -0.5 V to 6.5 V; (2)Analog voltage range, VNC, VNO, VCOM: -0.5 V to V+ +0.5 V; (3)Analog port diode current, II/OK (VNC, VNO, VCOM < 0 or VNC, VNO, VCOM > V+): ±50 mA; (4)On-state switch current, INC, INO, ICOM (VNC, VNO, VCOM = 0 to V+): ±50 mA; (5)Digital input voltage range, VIN: -0.5 V to 6.5 V; (6)Digital input clamp current, IIK (VIN < 0): -50 mA; (7)Continuous current through V+ or GND: ±100 mA; (8)Package thermal impedance,θJA: 165℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TS5A23157DGSR features: (1)Isolation in the Powered-Down Mode, V+ = 0; (2)Low ON-State Resistance (10 W); (3)Low Charge Injection; (4)Excellent ON-State Resistance Matching; (5)Low Total Harmonic Distortion (THD); (6)2.3-V to 3.6-V Single-Supply Operation; (7)Latch-Up Performance Exceeds 100 mA PerJESD 78, Class II; (8)ESD Performance Tested Per JESD 22, 2000-V Human-Body Model(A114-B, Class II); 1000-V Charged-Device Model (C101).

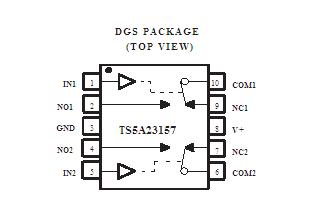

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TS5A23157DGSR |
Texas Instruments |
Analog Switch ICs Dual 10-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A23157DGSRE4 |
Texas Instruments |
Analog Switch ICs Dual 10-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A23157DGSRG4 |
Texas Instruments |
Analog Switch ICs Dual 10-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
