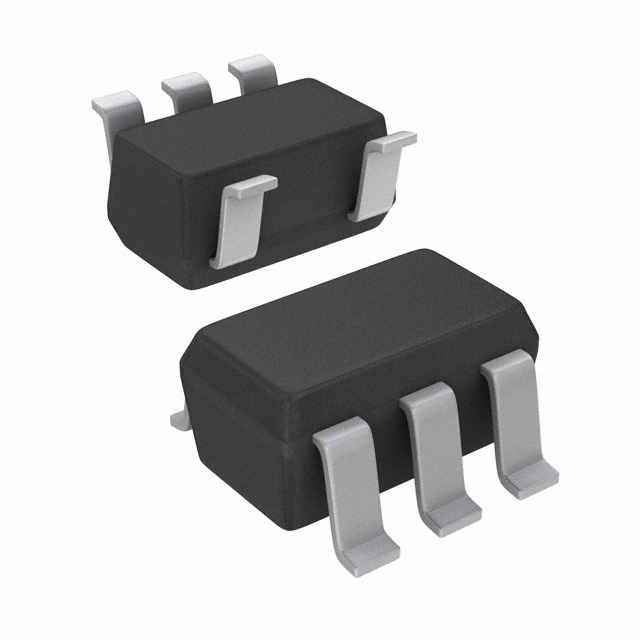

Product Summary
The TS5A1066DBVR is a single-pole single-throw (SPST) analog switch that is designed to operate from 1.65 V to 5.5 V. The TS5A1066DBVR can handle both digital and analog signals, and signals up to V+ (peak) can be transmitted in either direction.
Parametrics
TS5A1066DBVR absolute maximum ratings: (1)V+ Supply voltage range: -0.5 to 6.5 V; (2)VNO, VCOM Analog voltage range: -0.5 V+ to + 0.5 V; (3)IK Analog port diode current VNO, VCOM < 0 or VNO, VCOM > V+: -50 to 50 mA; (4)INO, ICOM, On-state switch current VNO, VCOM = 0 to V+: -50 to 50 mA; (5)VI Digital input voltage range: -0.5 to 6.5 V; (6)IIK Digital input clamp current VI < 0 .50 mA; (7)I+ IGND, Continuous current through V+ or GND: -100 to 100 mA; (8)θJA Package thermal impedance: 165 ℃/W; (9)Tstg Storage temperature range: -65 to 150 ℃.
Features
TS5A1066DBVR features: (1)Low ON-State Resistance (10Ω); (2)Control Inputs Are 5.5-V Tolerant; (3)Low Charge Injection; (4)Low Total Harmonic Distortion (THD); (5)1.65-V to 5.5-V Single-Supply Operation; (6)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (7)ESD Performance Tested Per JESD 22.

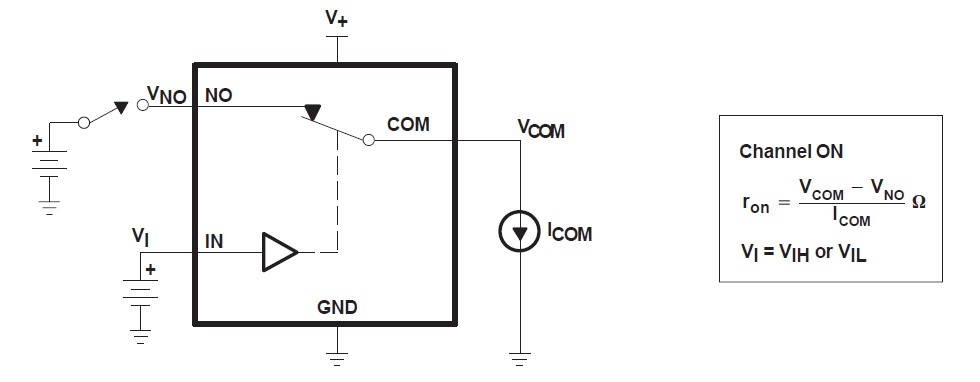

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

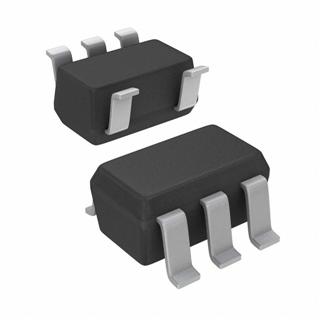

 TS5A1066DBVR |
Texas Instruments |
Analog Switch ICs 10-Ohm SPST Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A1066DBVRE4 |
Texas Instruments |
Analog Switch ICs 10-Ohm SPST Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A1066DBVRG4 |
Texas Instruments |
Analog Switch ICs 10O SPST Ana Sw |
Data Sheet |
|
|
||||||||||||
