TPS7A3401DGNR

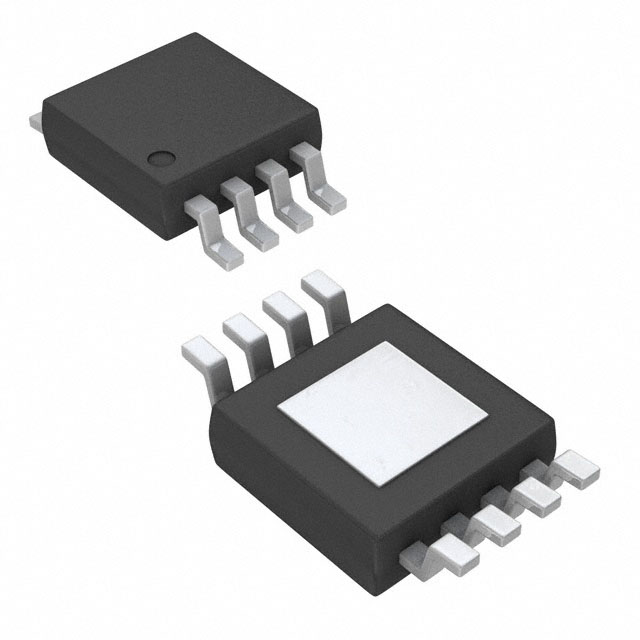

TPS7A3401DGNR, ultralow-noise linear regulator, MSOP, -22 to +0.3V, -200mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.91 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.91

PartNumber:: TPS7A3401DGNR

Brand:: Texas Instruments - TI | Pack: MSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:TPS7A3401DGNR
US $1.00 - 1.91
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TPS7A3401DGNR is a negative, high-voltage (-20V), ultralow-noise linear regulator capable of sourcing a maximum load of 200mA. The linear regulator includes a CMOS logic-level-compatible enable pin and capacitor-programmable soft-start function that allows for customized power-management schemes. Other features available include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions. The applications of the TPS7A3401DGNR include Cost-Effective Supply Rails for Op Amps, DACs, ADCs, and Other High-Precision Analog Circuitry, Cost-Effective Post DC/DC Converter Regulation and Ripple Filtering.

Parametrics

TPS7A3401DGNR absolute maximum ratings: (1)Voltage, IN pin to GND pin: -22 to +0.3V; OUT pin to GND pin: -22 to +0.3V; OUT pin to IN pin: -0.3 to +22V; FB pin to GND pin: -2 to +0.3V; FB pin to IN pin: -0.3 to +22V; EN pin to IN pin: -0.3 to 22V; EN pin to GND pin: -22 to +22V; PG pin to GND pin: -0.3 to +22V; (2)Current, Peak output: Internally limited; (3)Temperature, Operating virtual junction, TJ, absolute maximum range: -40 to +150℃; Storage, Tstg: -65 to +150℃; (4)Electrostatic discharge rating, Human body model (HBM): 2kV; Charged device model (CDM): 500V.

Features

TPS7A3401DGNR features: (1)Input Voltage Range: -3V to -20V; (2)Noise: 80mVRMS (10Hz to 100kHz); (3)Power-Supply Ripple Rejection: 50dB (120Hz); ≥ 27dB (10Hz to 1MHz); (4)Adjustable Output: –1.18V to –18V; (5)Maximum Output Current: 200mA; (6)Dropout Voltage: 500mV at 100mA; (7)Stable with Ceramic Capacitors≥ 2.2mF; (8)CMOS Logic-Level-Compatible Enable Pin; (9)Built-In, Fixed, Current-Limit and Thermal Shutdown Protection; (10)Available in High Thermal Performance MSOP-8 PowerPAD Package; (11)Operating Tempature Range: -40℃ to +125℃.
