Product Summary

The TPS79633DCQR is a low-dropout (LDO) low-power linear voltage regulator features high power supply rejection ratio (PSRR), ultra low-noise, fast start-up, and excellent line and load transient responses in small outline, 3 x 3 SON, SOT223-6, and 5-pin DDPAK packages. Each device in the family is stable with a small 1-μF ceramic capacitor on the output. The applications of the TPS79633DCQR include RF: VCOs, Receivers, ADCs, Audio, Bluetooth, Wireless LAN, Cellular and Cordless Telephones, Handheld Organizers, PDAs.

Parametrics

TPS79633DCQR absolute maximum ratings: (1)VIN range: -0.3 V to 6 V; (2)VEN range: -0.3 V to VIN + 0.3 V; (3)VOUT range: 6 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)ESD rating, CDM: 500 V; (7)Continuous total power dissipation: See Dissipation Ratings Table; (8)Junction temperature range, TJ: -40℃ to 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TPS79633DCQR features: (1)1-A Low-Dropout Regulator With Enable; (2)Available in 1.8-V, 2.5-V, 2.8-V, 3-V, 3.3-V, and Adjustable (1.2-V to 5.5-V); (3)High PSRR (53 dB at 10 kHz); (4)Ultralow-Noise (40 μVRMS, TPS79630); (5)Fast Start-Up Time (50 μs); (6)Stable With a 1-μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (250 mV at Full Load, TPS79630); (9)3 x 3 SON, 6-Pin SOT223-6, and 5-Pin DDPAK Packages.

Diagrams

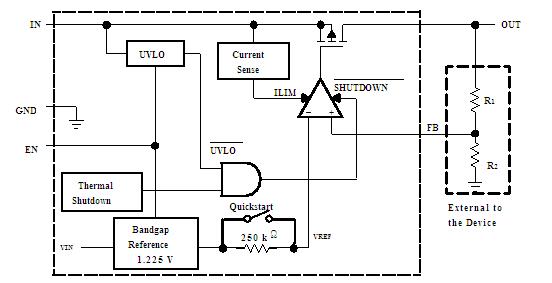

TPS79633DCQR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

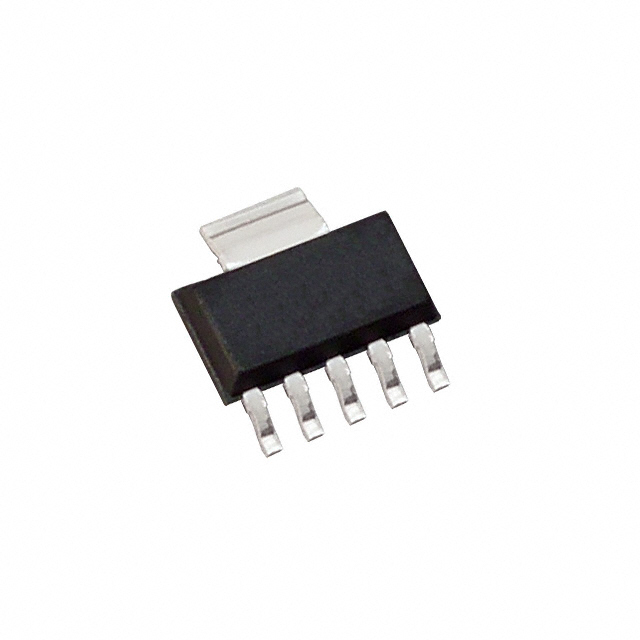

TPS79633DCQR
TPS79633DCQR
Texas Instruments
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 1A
Data Sheet
0-1: $1.60
1-25: $1.46
25-100: $1.33
100-250: $0.94
TPS79633DCQRG4
TPS79633DCQRG4
Texas Instruments
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 1A
Data Sheet
Negotiable
