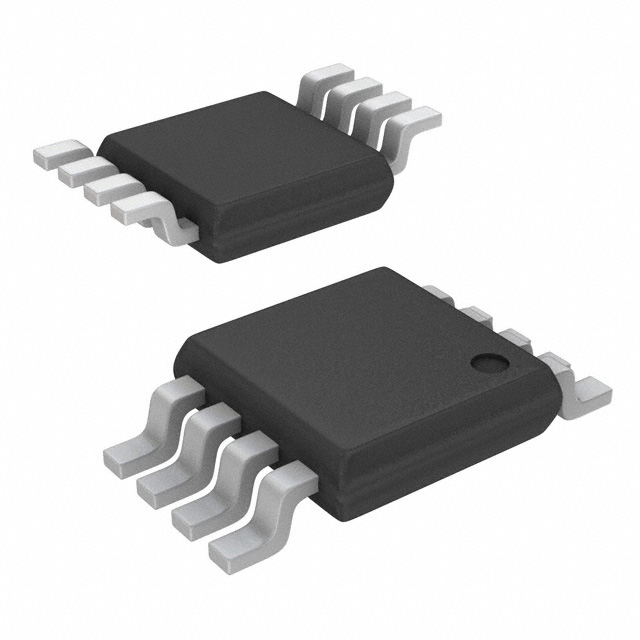

Product Summary
The TPS77901DGK is a low dropout regulator with integrated power-on reset. The device is capable of supplying 250 mA of output current with a dropout of 200 mV (TPS77930). Quiescent current is 92μA at full load dropping down to 1 μA when the device is disabled. The TPS77901DGK is optimized to be stable with a wide range of output capacitors including low ESR ceramic (10μF) or low capacitance (1μF) tantalum capacitors.
Parametrics
TPS77901DGK absolute maximum ratings: (1)Input voltage range, VIN(2): -0.3 to +13.5V; (2)Voltage range at EN: -0.3 to +16.5V; (3)Maximum RESET voltage (TPS775xx): 16.5V; (4)Maximum PG voltage (TPS778xx): 16.5V; (5)Peak output current: Internally limited; (6)Voltage range at OUT, FB: 7V; (7)Continuous total power dissipation: See Dissipation Ratings Table; (8)Operating junction temperature range, TJ: -40 to +125℃; (9)Storage junction temperature range, TSTG: -65 to +150℃; (10)ESD rating, HBM: 2kV.
Features
TPS77901DGK features: (1)Open Drain Power-On Reset With 220-ms Delay; (2)250-mA Low-Dropout Voltage Regulator; (3)Available in 1.8-V, 2.5-V, 3-V, Fixed Outputand Adjustable Versions; (4)Dropout Voltage Typically 200 mV at 250 mA (TPS77930); (5)Ultra Low 92-μA Quiescent Current (Typ); (6)8-Pin MSOP (DGK) Package; (7)Low Noise (55 μVrms) With No Bypass Capacitor (TPS77918); (8)2% Tolerance Over Specified Conditions For Fixed-Output Versions; (9)Fast Transient Response; (10)Thermal Shutdown Protection; (11)See the TPS773xx and TPS774xx Family of Devices for Active Low Enable.

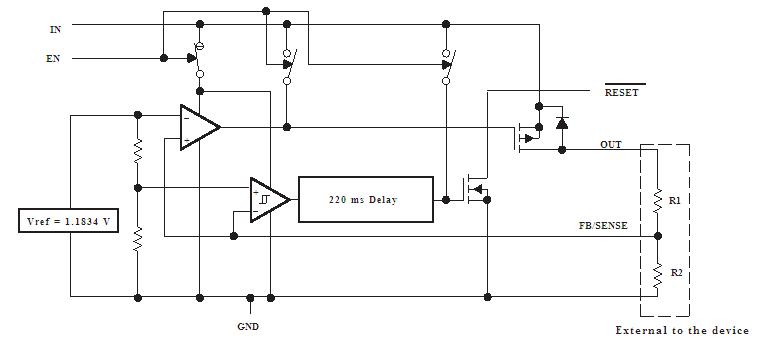

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS77901DGK |
Texas Instruments |
Low Dropout (LDO) Regulators 250mA LDO |
Data Sheet |
|
|
||||||||||||
|
TPS77901DGKR |
Texas Instruments |
Low Dropout (LDO) Regulators 250mA LDO |
Data Sheet |
|
|
||||||||||||
|
TPS77901DGKG4 |
Texas Instruments |
Low Dropout (LDO) Regulators 250mA LDO |
Data Sheet |
|
|
||||||||||||
|
TPS77901DGKRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators 250mA LDO |
Data Sheet |
|
|
||||||||||||
