Product Summary

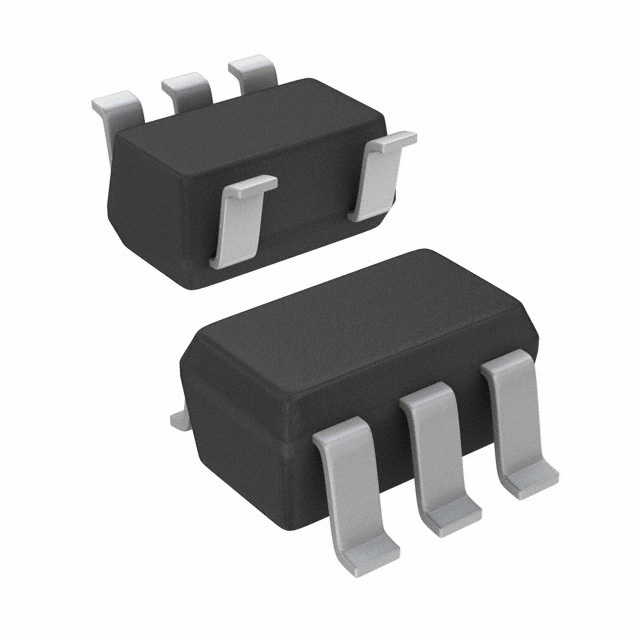

The TPS76918DBVR is a low-dropout (LDO) voltage regulator offers the benefits of lowdropout voltage, ultralow-power operation, and miniaturized packaging. The TPS76918DBVR features low dropout voltages and ultralow quiescent current compared to conventional LDO regulators. Offered in a 5-terminal small outline integrated-circuit SOT-23 package, the TPS76918DBVR is ideal for micropower operations and where board space is at a premium.
Parametrics
TPS76918DBVR absolute maximum ratings: (1)Input voltage range: -0.3 V to 13.5 V; (2)Voltage range at EN: -0.3 V to VI + 0.3 V; (3)Voltage on OUT, FB: 7 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)Continuous total power dissipation: See Dissipation Rating Table; (7)Operating virtual junction temperature range, TJ: -40℃ to 150℃ Storage temperature range, Tstg: -65℃ to 150℃.
Features
TPS76918DBVR features: (1)100-mA Low-Dropout Regulator; (2)Available in 1.2-V, 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, and 5-V Fixed-Output and Adjustable Versions; (3)Only 17 μA Quiescent Current at 100 mA; (4)1μA Quiescent Current in Standby Mode Dropout Voltage Typically 71 mV at 100mA; (5)Over Current Limitation; (6)-40℃ to 125℃ Operating Junction Temperature Range; (7)5-Pin SOT-23 (DBV) Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS76918DBVRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Ultra Low-Power 100-mA LDO |
Data Sheet |
|
|
||||||||||||
|
TPS76918DBVR |
Texas Instruments |
Low Dropout (LDO) Regulators 1.8V 100mA LDO |
Data Sheet |
|
|
||||||||||||
