Product Summary

The TPS75615KTTT is a low dropout regulator with integrated power-on reset and power-good (PG) functions respectively. The TPS75615KTTT is capable of supplying 1.5 A of output current with a dropout of 160 mV. Quiescent current is 125μA at full load and drops down to 1 μA when the device is disabled. The TPS75615KTTT is designed to have fast transient response for larger load current changes.

Parametrics

TPS75615KTTT absolute maximum ratings: (1)Input voltage range, VI: -0.3 V to 6.0 V; (2)Voltage range at EN: -0.3 V to 16.5 V; (3)Maximum PG voltage (TPS751xxQ): 16.5 V; (4)Maximum RESET voltage (TPS753xxQ): 16.5 V; (5)Peak output current: Internally limited; (6)Continuous total power dissipation: See dissipation rating tables; (7)Output voltage, VO (OUTPUT, FB): 5.5 V; (8)Operating virtual junction temperature range, TJ: -40℃ to 125℃; (9)Storage temperature range, Tstg: -65℃ to 150℃; (10)ESD rating, HBM: 2 kV.

Features

TPS75615KTTT features: (1)5-A Low-Dropout Voltage Regulator; (2)Available in 1.5-V, 1.8-V, 2.5-V, 3.3-V, Fixed Output and Adjustable Versions; (3)Dropout Voltage Typically 160 mV at 1.5 A (TPS75133Q); (4)Ultralow 125μA Typical Quiescent Current; (5)Fast Transient Response; (6)3% Tolerance Over Specified Conditions For Fixed-Output Versions; (7)Available in 5-Pin TO–220 and TO–263 Surface-Mount Packages; (8)Thermal Shutdown Protection.

Diagrams

TPS75615KTTT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

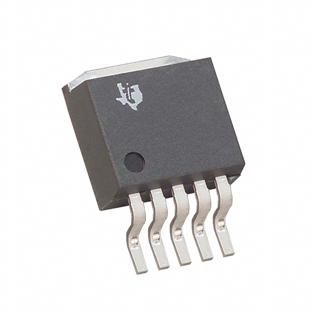

TPS75615KTTTG3
TPS75615KTTTG3

Texas Instruments

Low Dropout (LDO) Regulators 5-A 1.5-V LDO

Data Sheet

0-1: $3.76
1-25: $3.17
25-100: $2.91
100-250: $2.65
TPS75615KTTT
TPS75615KTTT

Texas Instruments

Low Dropout (LDO) Regulators 5-A 1.5-V LDO

Data Sheet

0-1: $3.76
1-25: $3.17
25-100: $2.91
100-250: $2.65
