Product Summary
The TPS71828-30DRVR is a low-dropout (LDO) regulator offers a high power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient RMS/Vresponses while consuming a very low 90μA (typical) at no load ground current with both LDOs enabled. The TPS71828-30DRVR also provides an active pulldown circuit to quickly discharge output loads. The applications of the TPS71828-30DRVR include Digital Cameras, Cellular Camera Phones, Wireless LAN, Bluetooth, Handheld Products.
Parametrics
TPS71828-30DRVR absolute maximum ratings: (1)Input voltage range, VIN: -0.3 to +7.0V; (2)Feedback input voltage range, VFB, VNR: -0.3 to +3.6V; (3)Enable voltage range, VEN: -0.3 to VIN + 0.3V; (4)VOutput voltage range, VOUT: -0.3 to +7.0V; (5)Maximum output current, IOUT: Internally limited; (6)Continuous total power dissipation, PDISS: See Dissipation Ratings Table; (7)Junction temperature range, TJ: -55 to +150℃; (8)Storage junction temperature range, TSTG: -55 to +150℃; (9)ESD rating, HBM2kVESD rating, CDM: 500V.
Features

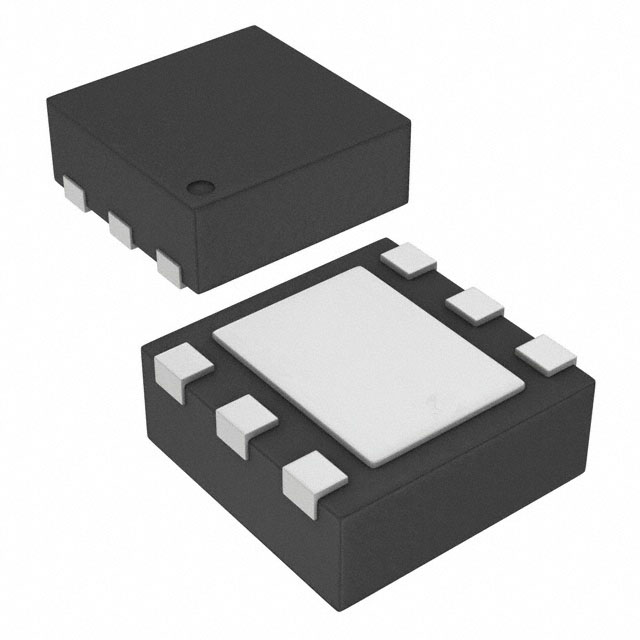

TPS71828-30DRVR features: (1)Dual, 200mA High-Performance LDOs; (2)Low Total Quiescent Current: 90μA with Both LDOs Enabled; (3)Low Noise: 70μV; (4)Active Output Pulldown (TPS719xx); (5)Independent Enables for Each LDO; (6)PSRR: 65dB at 1kHz, 45dB at 1MHz; (7)Available in Multiple Fixed-Output Voltage Combinations from 0.9V to 3.6V Using Innovative Factory EEPROM Programming; (8)Fast Start-Up Time: 160μs; (9)Over-Current, Over-Temperature and Under-Voltage Protection; (10)Low Dropout: 230mV at 200mA; (11)Stable with 1μF Ceramic Output Capacitor; (12)Available in 2mm × 2mm SON-6 Package.

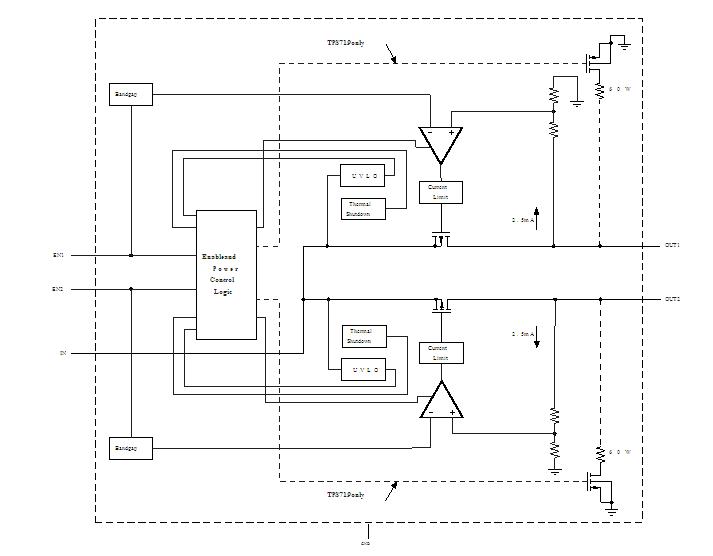

Diagrams
