Product Summary

The TPS62111RSAR is a low-noise synchronous step-down dc-dc converter suited for systems powered from a 2-cell Li-ion battery or from a 12-V or 15-V rail. The TPS62111RSAR is a synchronous PWM converter with1.2 V to 16 V integrated N- and P-channel power MOSFET switches. Synchronous rectification is used to 3.3 V and 5 V increase efficiency and to reduce external component count. The applications of the TPS62111RSAR include Point-of-Load Regulation From 12-V Bus, Organizers, PDAs, and Handheld PCs, Handheld Scanners.

Parametrics

TPS62111RSAR absolute maximum ratings: (1)VCC, Supply voltage at VIN, VINA: –0.3 V to 20 V; (2)VI, Voltage at SW: -1 V to 20 V; Voltage at EN, SYNC, LBO, PG: –0.3 V to 20 V; (3)Voltage at LBI, FB: -0.3 V to 7 V; (4)IO, Output current at SW: 2400 mA; (5)TJ, Maximum junction temperature: 150℃; (6)TA, Operating free-air temperature: -40℃ to 85℃; (7)Tstg, Storage temperature: -65℃ to 150℃.

Features

TPS62111RSAR features: (1)High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency; (2)3.1-V to 17-V Operating Input Voltage Range; (3)Adjustable Output Voltage Range From 1.2 V to 16 V; (4)Fixed Output Voltage Options Available in 3.3 V and 5 V; (5)Synchronizable to External Clock Signal up to 1.4 MHz; (6)Up to 1.5-A Output Current; (7)High Efficiency Over a Wide Load-Current Range Due to PFM/PWM Operation Mode; (8)100% Maximum Duty Cycle for Lowest dropout; (9)20-μA Quiescent Current (Typical); (10)Overtemperature and Overcurrent Protected; (11)Available in 16-Pin QFN Package.

Diagrams

TPS62111RSAR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

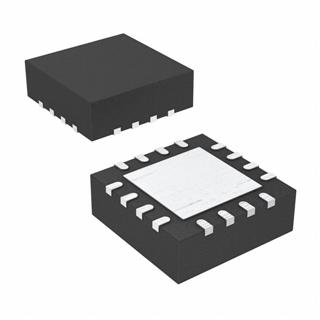

TPS62111RSAR
TPS62111RSAR

Texas Instruments

DC/DC Switching Regulators 3.3-V 1.5-A Vin Step-Down Con

Data Sheet

0-2310: $1.09
2310-3000: $1.05
3000-6000: $1.03
TPS62111RSARG4
TPS62111RSARG4

Texas Instruments

DC/DC Switching Regulators 3.3-V 1.5-A Vin Step-Down Con

Data Sheet

0-2310: $1.09
2310-3000: $1.05
3000-6000: $1.03
