Product Summary
The TPS54872PWP is a low-input voltage high-output current synchronous-buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter L and C components; an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3.8 V. The applications of the TPS54872PWP include DDR Memory Termination Voltage, Active Termination of GTL and SSTL High-Speed Logic Families, DAC Controlled High Current Output Stage, Precision Point of Load Power Supply.
Parametrics
TPS54872PWP absolute maximum ratings: (1)Input voltage range, VI: VIN, SS/ENA, SYNC: -0.3 V to 7 V; RT: -0.3 V to 6V; VSENSE: -0.3 V to 4V; BOOT: -0.3 V to 17 V; (2)Output voltage range, VO, VBIAS, COMP, PWRGD: -0.3 V to 7 V; PH: -0.6 V to 10 V; (3)Source current, IO: PH Internally Limited; COMP, VBIAS: 6 mA; (4)Sink current, IS: PH: 12 A; COMP: 6mA; SS/ENA, PWRGD: 10mA; (5)Voltage differential AGND to PGND: ±0.3 V; (6)Operating virtual junction temperature range, TJ: -40 to 125 ℃; (7)Storage temperature, Tstg: -65 to 150 ℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300 ℃.
Features
TPS54872PWP features: (1)Externally Applied Reference Voltage; (2)30-mΩ MOSFET Switches for High Efficiency at 8-A Continuous Output Source or Sink Current; (3)6% to 90% VI Output Tracking Range; (4)Wide PWM Frequency: Fixed 350 kHz or Adjustable 280 kHz to 700kHz; (5)Load Protected by Peak Current Limit and Thermal Shutdown; (6)Integrated Solution Reduces Board Area and Total Cost.

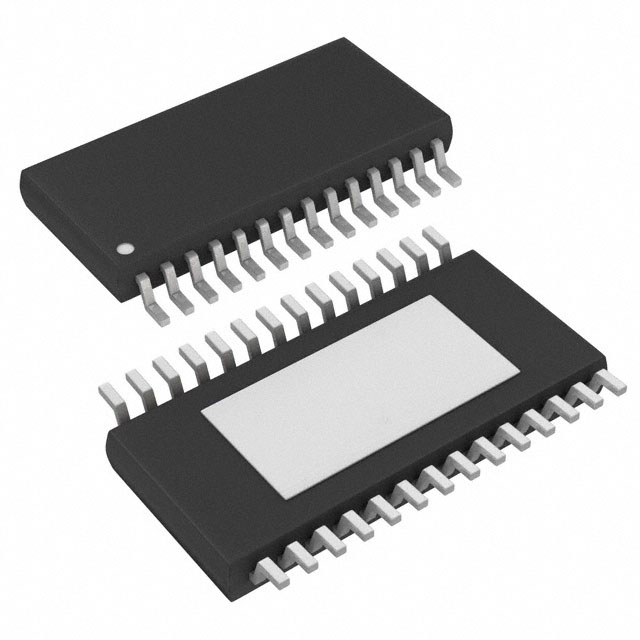

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS54872PWP |
Texas Instruments |
DC/DC Switching Regulators 8A Act Bus Term/DDR DC/DC Converter |
Data Sheet |
|
|
||||||||||||
|
TPS54872PWPG4 |
Texas Instruments |
DC/DC Switching Regulators 8A Act Bus Term/DDR DC/DC Converter |
Data Sheet |
|
|
||||||||||||
|
TPS54872PWPRG4 |
Texas Instruments |
DC/DC Switching Regulators 8A Act Bus Term/DDR DC/DC Converter |
Data Sheet |
|
|
||||||||||||
|
TPS54872PWPR |
Texas Instruments |
DC/DC Switching Regulators 8A Act Bus Term/DDR DC/DC Converter |
Data Sheet |
|
|
||||||||||||
