Product Summary

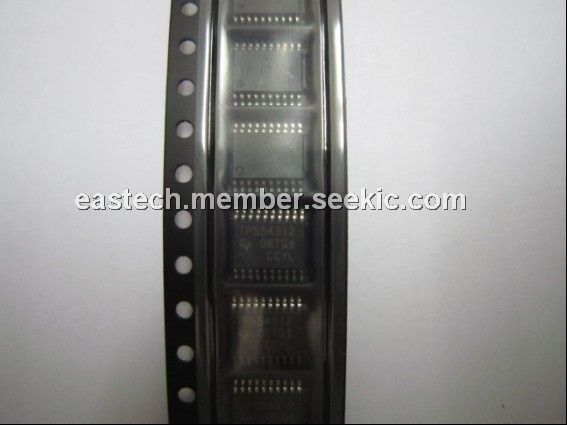

The TPS54312PWP is a low-input-voltage high-output-current synchronous-buck PWM converter which integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit of the TPS54312PWP to limit in-rush currents; and a power good output useful for processor/logic reset, fault signaling, and supply sequencing.
Parametrics
TPS54312PWP absolute maximum ratings: (1)VIN, SS/ENA, SYNC: –0.3 V to 7 V; (2)RT: –0.3 V to 6 V; (3)VSENSE: –0.3 V to 4 V; (4)BOOT: –0.3 V to 17 V; (5)VBIAS, PWRGD, COMP: –0.3 V to 7 V; (6)VO PH:–0.6 V to 10 V; (7)Source current, IO COMP, VBIAS: 6 mA; (8)Sink current PH: 6 A; (9)Sink current COMP: 6 mA; (10)Sink current SS/ENA,PWRGD: 10 mA; (11)Voltage differential AGND to PGND: ±0.3 V; (12)Operating virtual junction temperature range: –40 to 125℃; (13)Storage temperature: –65 to 150℃; (14)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.
Features
TPS54312PWP features: (1)60-mΩ MOSFET Switches for High Efficiency at 3-A Continuous Output Source or Sink Current; (2)0.9-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V and 3.3-V Fixed Output Voltage Devices With 1% Initial Accuracy; (3)Internally Compensated for Low Parts Count; (4)Fast Transient Response; (5)Wide PWM Frequency: Fixed 350 kHz, 550kHz, or Adjustable 280 kHz to 700 kHz; (6)Load Protected by Peak Current Limit and Thermal Shutdown; (7)Integrated Solution Reduces Board Area and Total Cost.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS54312PWP |
Texas Instruments |
DC/DC Switching Regulators Lo-In Voltage 3A Sync Buck Converter |
Data Sheet |
|
|
||||||||||||
|
TPS54312PWPRG4 |
Texas Instruments |
DC/DC Switching Regulators Lo-In Voltage 3A Sync Buck Converter |
Data Sheet |
|
|
||||||||||||
|
TPS54312PWPR |
Texas Instruments |
DC/DC Switching Regulators Lo-In Voltage 3A Sync Buck Converter |
Data Sheet |
|
|
||||||||||||
|
TPS54312PWPG4 |
Texas Instruments |
DC/DC Switching Regulators Lo-In Voltage 3A Sync Buck Converter |
Data Sheet |
|
|
||||||||||||
