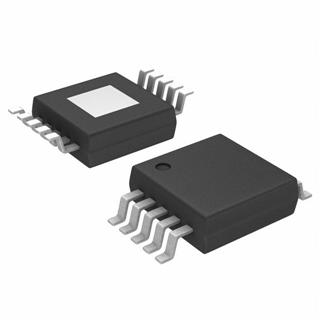

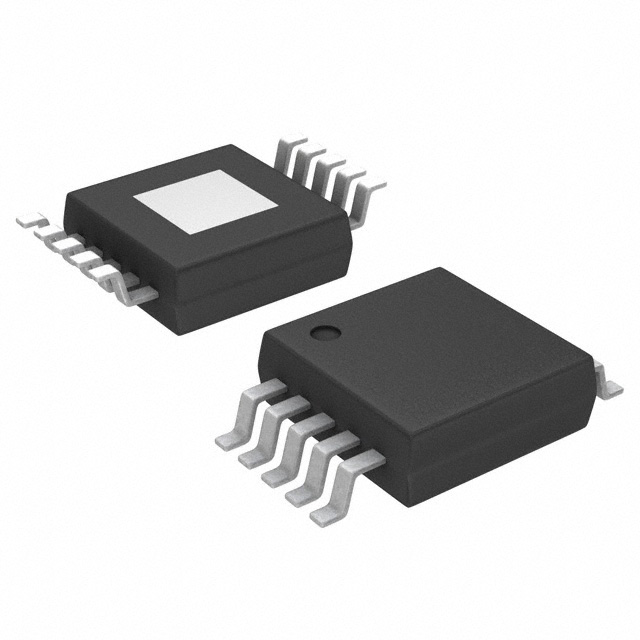

TPS54160DGQR

Product Summary

The TPS54160DGQR is a 60V, 1.5A, step down regulator with an integrated high side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116 μA. Using the enable pin, shutdown supply current is reduced to 1.3 μA. Under voltage lockout is internally set at 2.5V, but can be increased using the enable pin. The TPS54160DGQR output voltage startup ramp is controlled by the slow start pin that can also be configured for sequencing/tracking. An open drain power good signal indicates the output is within 93% to 107% of its nominal voltage.

Parametrics

TPS54160DGQR absolute maximum ratings: (1)input voltage, VIN: -0.3 to 65V; EN: -0.3 to 5V; BOOT: 73V; VSENSE: -0.3 to 3V; COMP: -0.3 to 3V; PWRGD: -0.3 to 6V; SS/TR: -0.3 to 3V; RT/CLK: -0.3 to 3.6V; (2)output voltage, PH, BOOT: 8V; PH: -0.6 to 65 V; PH, 10-ns Transient: –2 to 65V; (3)Voltage Difference, PAD to GND: ± 200 mV; (4)Source current, EN: 100μA; BOOT: 100 mA; VSENSE: 10μA; PH: Current Limit; RT/CLK: 100μA; (5)Sink current, VIN: Current LimiT; COMP: 100μA; PWRGD: 10 mA; SS/TR: 200μA; (6)Electrostatic Discharge (HBM) QSS 009-105 (JESD22-A114A): 1 kV; (7)Electrostatic Discharge (CDM) QSS 009-147 (JESD22-C101B.01): 500 V; (8)Operating junction temperature: –40 to 150℃; (9)Storage temperature: –65 to 150℃.

Features

TPS54160DGQR features: (1)3.5V to 60V Input Voltage Range; (2)200-mΩ High-Side MOSFET; (3)High Efficiency at Light Loads with a Pulse Skipping Eco-Mode; (4)116 μA Operating Quiescent Current; (5)1.3 μA Shutdown Current; (6)300kHz to 2.5MHz Switching Frequency; (7)Synchronizes to External Clock; (8)Adjustable Slow Start/Sequencing; (9)UV and OV Power Good Output; (10)Adjustable UVLO Voltage and Hysteresis; (11)0.8-V Internal Voltage Reference; (12)MSOP10 Package With PowerPAD; (13)Supported by SwitcherPro Software Tool; (14)For SWIFT Documentation.
