Product Summary
The TPS3801K33DCKR is a supply voltage supervisor.
Parametrics
TPS3801K33DCKR absolute maximum ratings: (1)Supply voltage, VDD: 7 V; (2)All other pins: -0.3 V to 7 V; (3)Maximum low-output current, IOL: 5 mA; (4)Maximum high-output current, IOH: -5 mA; (5)Input-clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (6)Output-clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (7)Operating junction temperature range, TJ (3): -40℃ to 85℃; (8)Storage temperature range, Tstg: -65℃ to 150℃; (9)Soldering temperature (3 seconds): 260℃.
Features

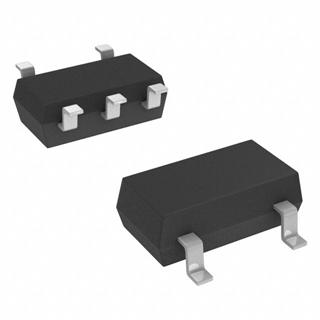

TPS3801K33DCKR features: (1)Small, 5-Pin SC-70 (SOT-323) Package; (2)Supply Current of 9 μA; (3)Power-On Reset Generator With Fixed Delay Time; (4)Precision Supply Voltage Monitor 1.8 V, 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V, and Adjustable; (5)Manual Reset Input (Except TPS3801-01); (6)Temperature Range: -40℃ to 85℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS3801K33DCKR |
Texas Instruments |
Supervisory Circuits 2.93V |
Data Sheet |
|
|
||||||||||||
|
TPS3801K33DCKRG4 |
Texas Instruments |
Supervisory Circuits Processor Sprvisry Circuits |
Data Sheet |
|
|
||||||||||||
