Product Summary
The TPS3123J12DBVR is an ultralow voltage processor supervisory circuits provides circuit initialization and timing supervision, primarily for DSP and processor-based systems. During power-on, RESET is asserted when the supply voltage (VDD) becomes higher than 0.75 V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET output active as long as VDD remains below the threshold voltage (VIT). The applications of the TPS3123J12DBVR include Applications Using Low Voltage DSPs, Microcontrollers, or Microprocessors, Portable/Battery-Powered Equipment, Wireless Communication Systems, Programmable Controls, Industrial Equipment, Notebook/Desktop Computers, Intelligent Instruments.
Parametrics
TPS3123J12DBVR absolute maximum ratings: (1)Manual reset, MR: -0.3 V to VDD + 0.6 V; (2)Supply voltage, VDD: 3.6 V; (3)Watchdog input, WDI: -0.3 V to VDD+ 6 V; (4)Maximum low output current, IOL: 5 mA; (5)Maximum high output current, IOH: -5 mA; (6)Input clamp current, IIK (VI< 0 or VI > VDD): ±10 mA; (7)Output clamp current, IOK (VO < 0 or VO > VDD): ±10 mA; (8)Continuous total power dissipation See Dissipation Rating Table; (9)Operating free-air temperature range, TA: -40℃ to 85℃; (10)Storage temperature range, Tstg: -65℃ to 150℃; (11)Soldering temperature: 260℃.
Features
TPS3123J12DBVR features: (1)Minimum Supply Voltage of 0.75 V; (2)Supply Voltage Supervision Range: 1.2 V, 1.5 V, 1.8 V (TPS312x); 3 V (TPS3125 Devices Only); Other Versions on Request; (3)Power-On Reset Generator With Fixed Delay Time of 180 ms; (4)Manual Reset Input (TPS3123/5/6/8); (5)Watchdog Timer Retriggers the RESET Output at VDD3 VIT; (6)Supply Current of 14 μA (Typ); (7)Small SOT23-5 Package; (8)Temperature Range of -40℃ to 85℃; (9)Reset Output Available in Push-Pull (Active Low and High) and Open-Drain (Active-Low).

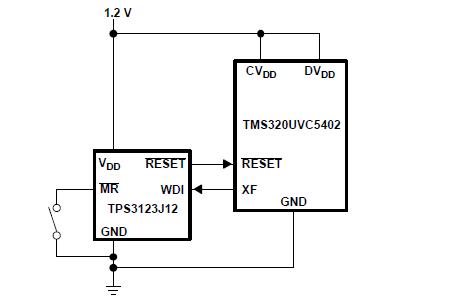

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

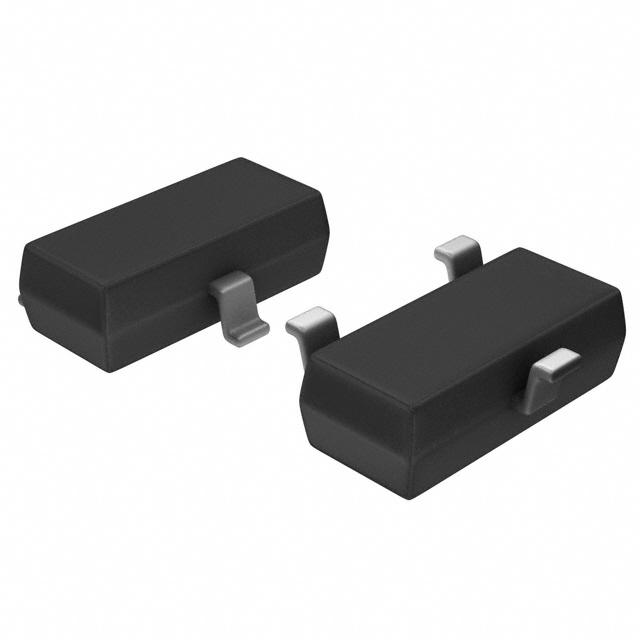

![]() TPS3123J12DBVR |
![]() Texas Instruments |
![]() Supervisory Circuits Ultra-Low Voltage Processor |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() TPS3123J12DBVR(2) |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() TPS3123J12DBVRG4 |
![]() Texas Instruments |
![]() Supervisory Circuits Ultra-Low Voltage Processor |
![]() Data Sheet |
![]()
|
|
