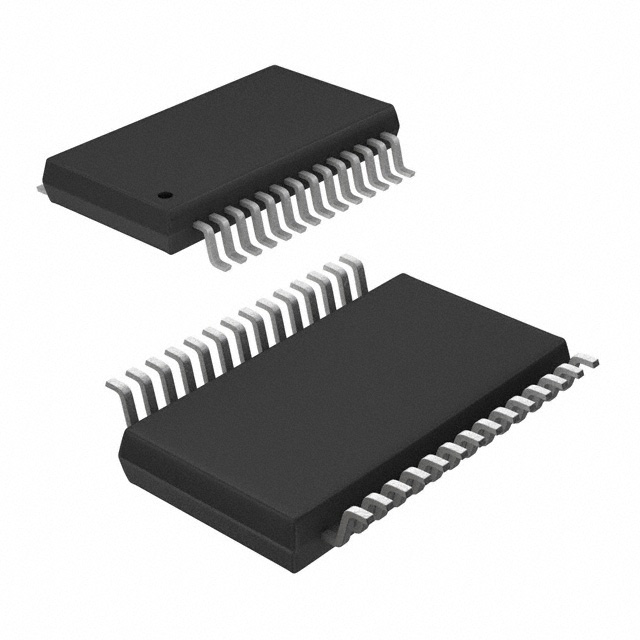

Product Summary
The TPS2201IDFR is a PC Card (PCMCIA) power interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, thermal protection, and power-good reporting for PC Card control are combined on a single integrated circuit (IC), using Texas Instruments LinBiCMOSE process. The TPS2201IDFR allows the distribution of 3-V, 5-V and/or 12-V card power and is compatible with most PCMCIA controllers. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability; current-limit reporting can help the user isolate a system fault to a bad card.
Parametrics
TPS2201IDFR absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 7 V; (2)Input voltage range for card power: VI(5V): -0.3 V to 7 V; VI(3V): -0.3 V to VI(5V); VI(12V): -0.3 V to 14 V; (3)Logic input voltage: -0.3 V to 7 V; (4)Continuous total power dissipation: See Dissipation Rating Table; (5)Output current (each card): IO(xVCC): internally limited; IO(xVPP): internally limited; (6)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (7)Operating free-air temperature range, TA: -40℃ to 85℃; (8)Storage temperature range, Tstg: -55℃ to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TPS2201IDFR features: (1)Fully Integrated VCC and Vpp Switching for Dual-Slot PC Card Interface; (2)Compatible With Controllers From Cirrus, Intel, and Texas Instruments; (3)Meets PCMCIA Standards; (4)Internal Charge Pump (No External Capacitors Required)-12-V Supply Can Be Disabled Except for Programming; (5)Short Circuit and Thermal Protection; (6)Space Saving SSOP (DB) Package; (7)Compatible With 3.3-V, 5-V and 12-V PC Cards; (8)Power Saving IDD = 83 mA Typ, IQ = 1 mA; (9)Low rDS(on) (160-mW VCC Switch); (10)Break-Before-Make Switching.

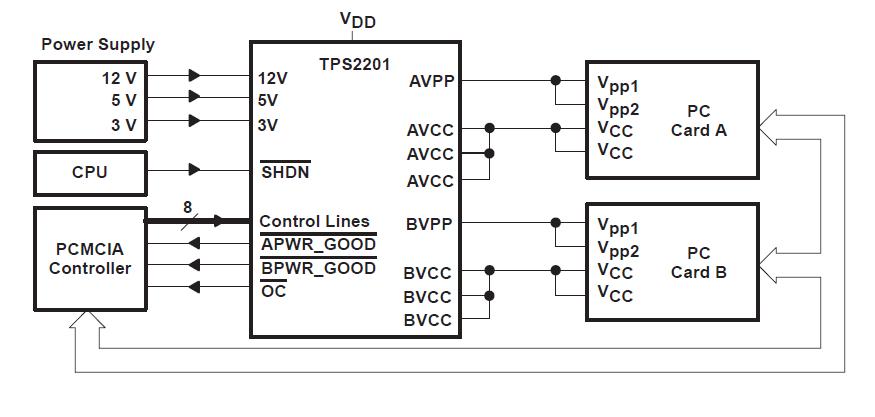

Diagrams

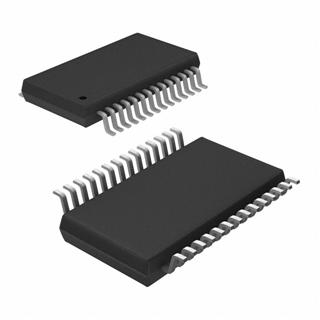

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS2201IDFR |
Texas Instruments |
Hot Swap & Power Distribution 1A Dual-Slot PC Card Power Switch |
