Product Summary

The TPS2065DGNR is a power-distribution switch intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70-mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch of TPS2065DGNR is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V. The applications of the TPS2065DGNR include Heavy Capacitive Loads, Short-Circuit Protections.

Parametrics

TPS2065DGNR absolute maximum ratings: (1)Input voltage range, VI(IN): -0.3 V to 6 V; (2)Output voltage range, VO(OUT), VO(OUTx): -0.3 V to 6 V; (3)Input voltage range, VI(EN), VI(EN), VI(ENx), VI(ENx): -0.3 V to 6 V; (4)Voltage range, VI(OC), VI(OCx): -0.3 V to 6 V; (5)Continuous output current, IO(OUT), IO(OUTx): Internally limited; (6)Operating virtual junction temperature range, TJ: -40℃ to 125℃; (7)Storage temperature range, Tstg: -65℃ to 150℃; (8)Electrostatic discharge (ESD) protection: Human body model MIL-STD-883C: 2 kV, Charge device model (CDM) 500 V.

Features

TPS2065DGNR features: (1)70-mΩ High-Side MOSFET; (2)1-A Continuous Current; (3)Thermal and Short-Circuit Protection; (4)Accurate Current Limit (1.1 A min, 1.9 A max); (5)Operating Range: 2.7 V to 5.5 V; (6)0.6-ms Typical Rise Time; (7)Undervoltage Lockout; (8)Deglitched Fault Report (OC); (9)No OC Glitch During Power Up; (10)1-mA Maximum Standby Supply Current; (11)Bidirectional Switch; (12)Ambient Temperature Range: -40℃ to 85℃; (13)Built-in Soft-Start; (14)UL Listed - File No. E169910.

Diagrams

TPS2065DGNR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

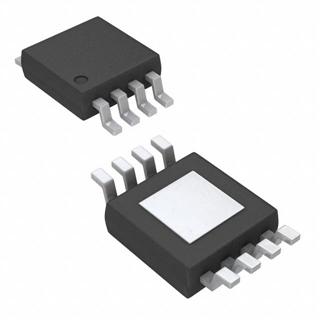

TPS2065DGNR
TPS2065DGNR

Texas Instruments

Power Switch ICs - USB Sngl 1A Crnt-Lit Pwr-Dstibtn Switches

Data Sheet

0-1: $1.15
1-25: $0.92
25-100: $0.83
100-250: $0.72
TPS2065DGNR-1
TPS2065DGNR-1

Texas Instruments

Power Switch ICs - USB Pwr Dist Switches

Data Sheet

0-1790: $0.42
1790-2000: $0.40
2000-2500: $0.40
2500-5000: $0.38
TPS2065DGNR-1G4
TPS2065DGNR-1G4

Texas Instruments

Power Switch ICs - USB Crnt-Ltd Pwr-Dist Sw

Data Sheet

0-1790: $0.42
1790-2000: $0.40
2000-2500: $0.40
2500-5000: $0.38
TPS2065DGNRG4
TPS2065DGNRG4

Texas Instruments

Power Switch ICs - USB Sngl 1A Crnt-Lit Pwr-Dstibtn Switches

Data Sheet

0-1790: $0.50
1790-2000: $0.48
2000-2500: $0.48
2500-5000: $0.46
