Product Summary
The TPD2E001DRYR is a low-capacitance ±15-kV ESD-protection diode array designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. The TPD2E001DRYR protects against ESD pulses up to ±15-kV Human-Body Model (HBM), ±8-kV Contact Discharge, and ±15-kV Air-Gap Discharge, as specified in IEC 61000-4-2. This device has a 1.5-pF capacitance per channel, making it ideal for use in high-speed data IO interfaces. The applications of the TPD2E001DRYR include USB 2.0, Ethernet, FireWire, Video, Cell Phones, SVGA Video Connections, Glucosemeters.
Parametrics
TPD2E001DRYR absolute maximum ratings: (1)VCC: -0.3 to 7 V; (2)VIO: -0.3 to VCC + 0.3 V; (3)Tstg Storage temperature range: -65 to 150℃; (4)TJ Junction temperature: 150℃; (5)Bump temperature (soldering), Infrared (15 s): 220℃; Vapor phase (60 s) 215℃; Lead temperature (soldering, 10 s) 300℃.
Features
TPD2E001DRYR features: (1)ESD Protection Exceeds, ±15-kV Human-Body Model (HBM); ±8-kV IEC 61000-4-2 Contact Discharge; ±15-kV IEC 61000-4-2 Air-Gap Discharge; (2)Low 1.5-pF Input Capacitance; (3)Low 1-nA (Max) Leakage Current; (4)Low 1-nA Supply Current; (5)0.9-V to 5.5-V Supply-Voltage Range; (6)Two-Channel Device; (7)Space-Saving DRL, DRY, and QFN Package Options; (8)Alternate 3-, 4-, 6-Channel Options Available: TPD3E001, TPD4E001, and TPD6E001.

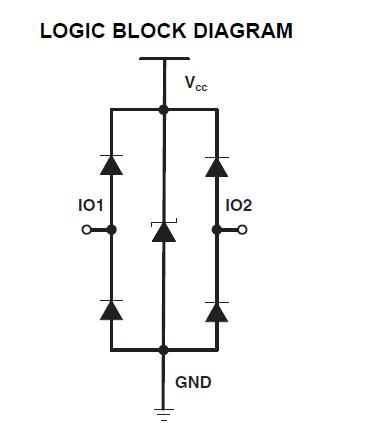

Diagrams
