Product Summary
The TPA6205A1DRBT is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-W impedance while consuming less than 37 mm2 (ZQV package option) total printed-circuit board (PCB) area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6205A1DRBT is available in the space-saving 2 mm x 2 mm MicroStar Junior. BGA package, and the space saving 3 mm x 3 mm QFN (DRB) package. The applications of the TPA6205A1DRBT include Designed for Wireless Handsets, PDAs, and other mobile devices, Compatible with Low Power (1.8V Logic) I/O Threshold control signals.
Parametrics
TPA6205A1DRBT absolute maximum ratings: (1)VDD, Supply voltage: -0.3 V to 6 V; (2)VI, Input voltage INx and SHUTDOWN pins: -0.3 V to VDD + 0.3 V; (3)Continuous total power dissipation: See Dissipation Rating Table; (4)TA, Operating free-air temperature: -40 to 85℃; (5)TJ, Junction temperature: -40 to 125℃; (6)Tstg, Storage temperature: -65 to 85℃; (7)Lead temperature 1,6 mm (1/16 Inch) from case for 10 seconds ZQV, DRB, DGN: 260℃.
Features
TPA6205A1DRBT features: (1)1.25 W Into 8W From a 5-V Supply at THD = 1% (Typical); (2)Shutdown Pin has 1.8V Compatible Thresholds; (3)Low Supply Current: 1.7mA Typical; (4)Shutdown Current < 10mA; (5)Only Five External Components, Improved PSRR (90 dB) and Wide Supply Voltage (2.5V to 5.5V) for Direct Battery Operation; Fully Differential Design Reduces RF Rectification; Improved CMRR Eliminates Two Input Coupling Capacitors; C(BYPASS) Is Optional Due to Fully Differential Design and High PSRR; (6)Available in 3 mm x 3 mm QFN Package; (7)Available in an 8-Pin PowerPAD MSOP; (8)Avaliable in a 2 mm x 2 mm MicroStar Junior BGA Package (ZQV).

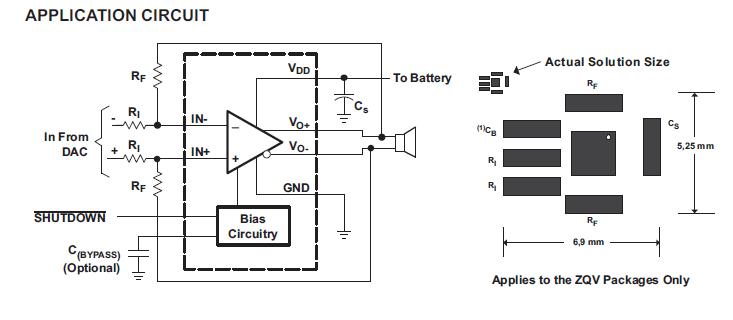

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

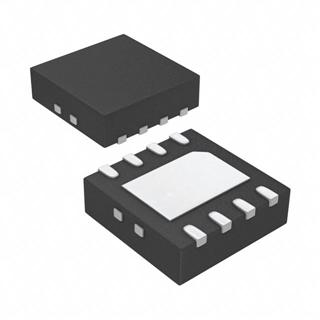

 TPA6205A1DRBT |
Texas Instruments |
Audio Amplifiers 1.25-W Mono Fully Diff Class-AB Aud |
Data Sheet |
|
|
||||||||||||
|
TPA6205A1DRBTG4 |
Texas Instruments |
Audio Amplifiers 1.25W Mono Fully Diff ClassAB Aud Amp |
Data Sheet |
|
|
||||||||||||
