Product Summary

The TMP75AIDGKT is a Two-Wire, serial output temperature sensor available in an SO-8 package. Requiring no external components, the device is capable of reading temperatures with a resolution of 0.0625℃. The TMP75AIDGKT features a Two-Wire interface that is SMBus-compatible, with the device allowing up to 27 devices on one bus and the device allowing up to eight devices on one bus. The TMP75AIDGKT features an SMBus alert function. The applications of the TMP75AIDGKT include power-supply temperature monitoring, computer peripheral thermal protection, notebook computers, cell phones, battery management, office machines, thermostat controls, environmental monitoring and hvac, electromechanical device temperature.

Parametrics

TMP75AIDGKT absolute maximum ratings: (1)Power Supply, V+: 7.0V; (2)Input Voltage: -0.5V to 7.0V; (3)Input Current: 10mA; (4)Operating Temperature Range: -55℃ to +127℃; (5)Storage Temperature Range: -60℃ to +130℃; (6)Junction Temperature (TJ Max): +150℃; (7)Lead Temperature (soldering): +300℃.

Features

TMP75AIDGKT features: (1)27 ADDRESSES (TMP175); (2)DIGITAL OUTPUT: Two-Wire Serial Interface; (3)RESOLUTION: 9- to 12-Bits, User-Selectable; (4)ACCURACY: ±1.5℃ (max) from -25℃ to +85℃; ±2.0℃ (max) from -40℃ to +125℃; (5)LOW QUIESCENT CURRENT: 50μA, 0.1μA Standby; (6)WIDE SUPPLY RANGE: 2.7V to 5.5V; (7)SMALL SO-8 PACKAGE.

Diagrams

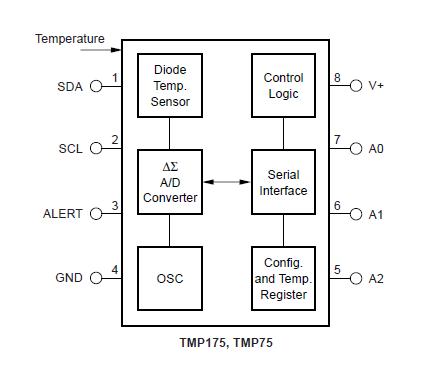

TMP75AIDGKT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

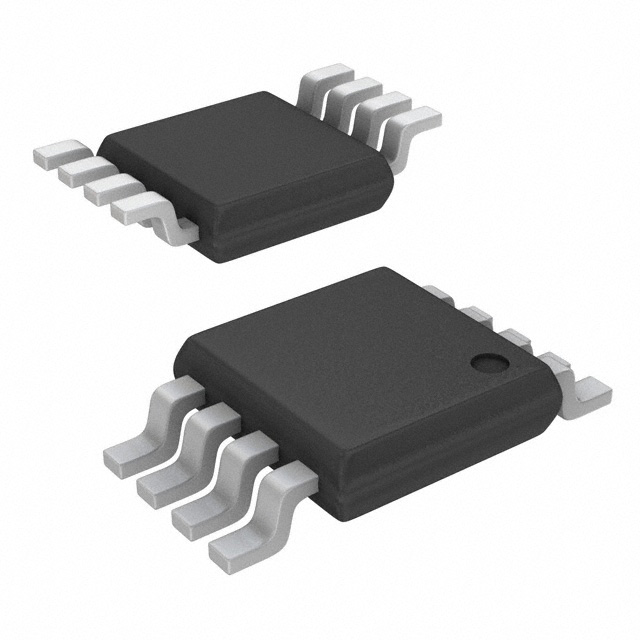

TMP75AIDGKT
TMP75AIDGKT
Texas Instruments
Board Mount Temperature Sensors Digital w/2-Wire Ifc
Data Sheet
0-1: $1.05
1-25: $0.83
25-100: $0.74
100-250: $0.60
TMP75AIDGKTG4
TMP75AIDGKTG4
Texas Instruments
Board Mount Temperature Sensors Digital w/2-Wire Ifc
Data Sheet
0-1: $1.05
1-25: $0.83
25-100: $0.74
100-250: $0.57
