Product Summary

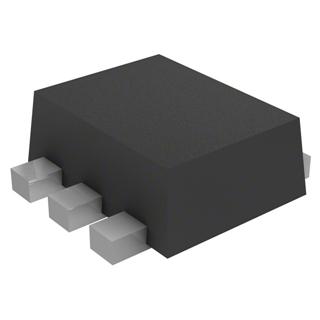

The TMP102AIDRLT is a two-wire, serial output temperature sensor available in a tiny SOT563 package. Requiring no external components, the TMP102 is capable of reading temperatures to a resolution of 0.0625℃. The TMP102AIDRLT features SMBus and two-wire interface compatibility, and allows up to four devices on one bus. It also features an SMB alert function. The applications of the TMP102AIDRLT include portable and battery-powered, power-supply temperature monitoring, computer peripheral thermal protection, notebook computers, battery management, office machines, thermostat controls, electromechanical device temperatures, general temperature measurements: industrial controls, test equipment, medical instrumentations.
Parametrics
TMP102AIDRLT absolute maximum ratings: (1)Supply Voltage: 3.6 V; (2)Input Voltage(2): -0.5 to +3.6 V; (3)Operating Temperature: -55 to +150℃; (4)Storage Temperature: -60 to +150℃; (5)Junction Temperature: +150℃; (6)ESD Rating, Human Body Model (HBM): 2000 V; Charged Device Model (CDM): 1000 V; Machine Model (MM): 200 V.
Features
TMP102AIDRLT features: (1)Tiny SOT563 package; (2)Accuracy: 0.5℃(-25℃ to +85℃); (3)Low quiescent current: 10mA Active (max); 1mA Shutdown (max); (4)Supply range: 1.4V to 3.6V; (5)Resolution: 12 bits; (6)Digital output: Two-Wire Serial Interface.

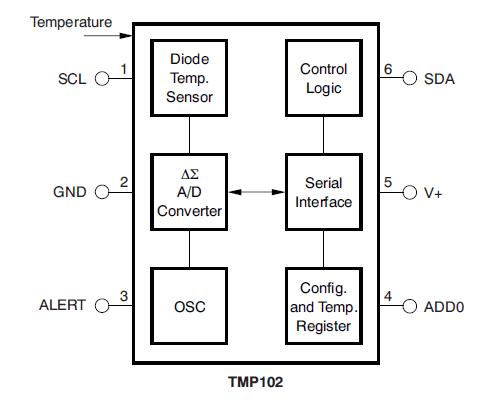

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMP102AIDRLT |
Texas Instruments |
Board Mount Temperature Sensors Lo Pwr Dig Temp Sensor |
Data Sheet |
|
|
||||||||||||||
|
TMP102AIDRLTG4 |
Texas Instruments |
Board Mount Temperature Sensors Lo Pwr Dig Temp Sensor |
Data Sheet |
|
|
||||||||||||||
