Product Summary
The TLV5618AIDR is a dual 12-bit voltage output DAC with a flexible 3-wire serial interface. The serial interface is compatible with TMS320, SPI, QSPI, and Microwire serial ports. The TLV5618AIDR is programmed with a 16-bit serial string containing 4 control and 12 data bits. The resistor string output voltage is buffered by an x2 gain rail-to-rail output buffer. The buffer features a Class-AB output stage to improve stability and reduce settling time. The applications of the TLV5618AIDR include Digital Servo Control Loops, Digital Offset and Gain Adjustment, Industrial Process Control, Machine and Motion Control Devices, Mass Storage Devices.
Parametrics
TLV5618AIDR absolute maximum ratings: (1)Supply voltage (VDD to AGND): 7 V; (2)Reference input voltage range: -0.3 V to VDD + 0.3 V; (3)Digital input voltage range: -0.3 V to VDD + 0.3 V; (4)Operating free-air temperature range, TA: -40℃ to 85℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV5618AIDR features: (1)Dual 12-Bit Voltage Output DAC; (2)Programmable Settling Time: 3 μs in Fast Mode; 10 μs in Slow Mode; (3)Compatible With TMS320 and SPI Serial Ports; (4)Differential Nonlinearity <0.5 LSB Typ; (5)Monotonic Over Temperature; (6)Direct Replacement for TLC5618A (C and I Suffixes); (7)Available in Q-Temp Automotive; HighRel Automotive Applications; Configuration Control/Print Support; Qualification to Automotive Standards.

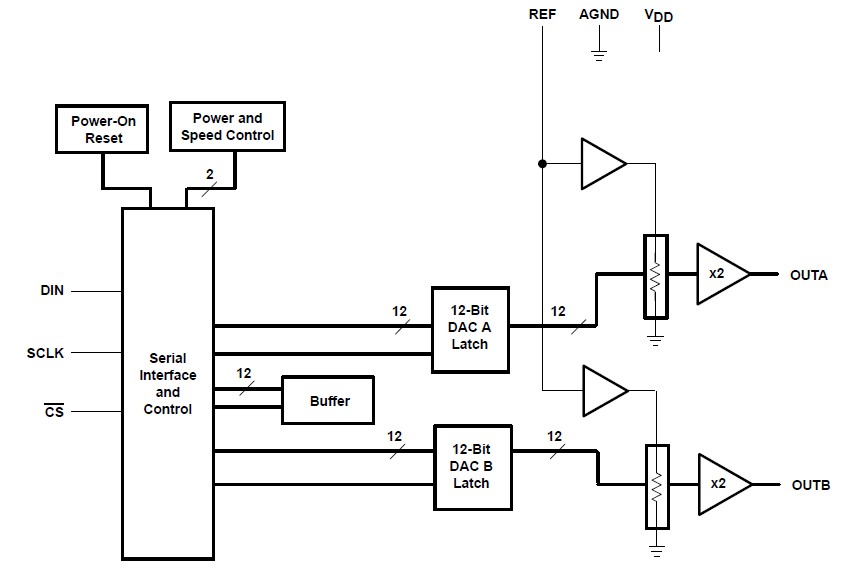

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV5618AIDR |
Texas Instruments |
DAC (D/A Converters) 12-Bit 2.5 us Dual DAC Serial Input |
Data Sheet |
|
|
||||||||||
|
TLV5618AIDRG4 |
Texas Instruments |
DAC (D/A Converters) 12-Bit 2.5 us Dual DAC Serial Input |
Data Sheet |
|
|
||||||||||
