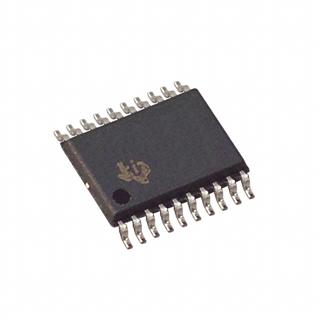

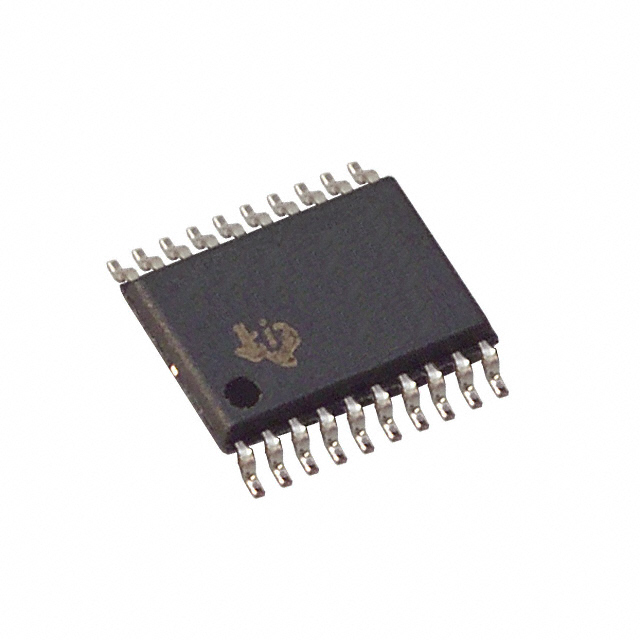

Product Summary
The TLV5613IPW is a 12-bit voltage output DAC with a microprocessor compatible parallel interface. Developed for a wide range of supply voltages, the TLV5613IPW can be operated from 2.7 V to 5.5 V. It is available in 20 pin SOIC in standard commercial and industrial temperature ranges. The applications of the TLV5613IPW are Digital Servo Control Loops, Digital Offset and Gain Adjustment, Battery Powered Test Instruments, Machine and Motion Control Devices, Industrial Process Control, Speech Synthesis, Mass Storage Devices.
Parametrics
TLV5613IPW absolute maximum ratings: (1)Supply voltage (VDD to GND): 7 V; (2)Supply voltage difference, AVDD to DVDD: -2.8 V to 2.8 V; (3)Reference input voltage: -0.3 V to AVDD + 0.3 V; (4)Digital input voltage range to GND: -0.3 V to VDD + 0.3 V; (5)Operating free-air temperature range, TA: -40℃ to 85℃; (6)Storage temperature range, Tstg: -65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV5613IPW features: (1)12-Bit Voltage Output DAC; (2)Single Supply 2.7-V to 5.5-V Operation; (3)Separate Analog and Digital Supplies; (4)±0.4 LSB Differential Nonlinearity (DNL), ±1.5 LSB Integral Nonlinearity (INL); (5)8-Bit mController Compatible Interface (8+4Bit); (6)Power-Down Mode (50 nW); (7)Rail-to-Rail Output Buffer; (8)Synchronous or Asynchronous Update; (9)Monotonic Over Temperature.

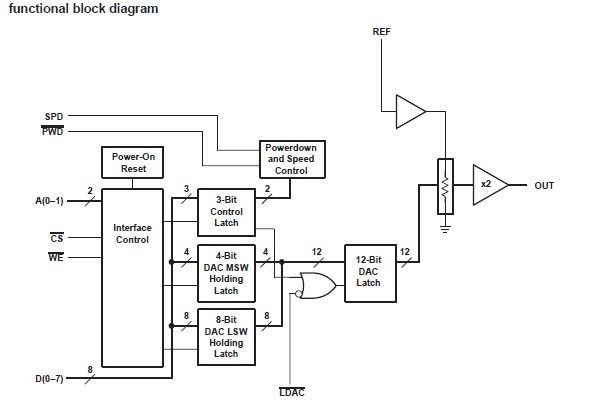

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV5613IPW |
Texas Instruments |
DAC (D/A Converters) 12bit CMOS DAC |
Data Sheet |
|
|
||||||||||||
|
TLV5613IPWG4 |
Texas Instruments |
DAC (D/A Converters) 12-Bit DAC Parallel Voltage Out |
Data Sheet |
|
|
||||||||||||
|
TLV5613IPWR |
Texas Instruments |
DAC (D/A Converters) 12-Bit DAC Parallel Voltage Out |
Data Sheet |
|
|
||||||||||||
|
TLV5613IPWRG4 |
Texas Instruments |
DAC (D/A Converters) 12-Bit DAC Parallel Voltage Out |
Data Sheet |
|
|
||||||||||||
