Product Summary

The TLV320AIC23BRHDR is a high-performance stereo audio codec with highly integrated analog functionality. The analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) within the TLV320AIC23BRHDR use multibit sigma-delta technology with integrated oversampling digital interpolation filters. Data-transfer word lengths of 16, 20, 24, and 32 bits, with sample rates from 8 kHz to 96 kHz, are supported. The ADC sigma-delta modulator features third-order multibit architecture with up to 90-dBA signal-to-noise ratio (SNR) at audio sampling rates up to 96 kHz, enabling high-fidelity audio recording in a compact, power-saving design.

Parametrics

TLV320AIC23BRHDR absolute maximum ratings: (1)Supply voltage range, AVDD, DVDD, PLLVDD, EARVDD: -0.5 V to 3.6 V; (2)Output voltage range, VO: -0.5 V to 3.6 V; (3)Input voltage range, VI: -0.5 V to 3.6 V; (4)Continuous total power dissipation: See Dissipation Rating Table; (5)Operating free air temperature range (industrial temperature): -40℃ to 85℃; (6)Storage temperature range, testing: -65℃ to 150℃; (7)Lead temperature 1,6 mm from case for 10 seconds: 260℃.

Features

TLV320AIC23BRHDR features: (1)90-dB SNR Multibit Sigma-Delta ADC (A-weighted at 48 kHz); (2)100-dB SNR Multibit Sigma-Delta DAC (A-weighted at 48 kHz); (3)1.42 V – 3.6 V Core Digital Supply: Compatible With TI C54x DSP Core Voltages; (4)2.7 V – 3.6 V Buffer and Analog Supply: Compatible Both TI C54x DSP Buffer Voltages; (5)8-kHz – 96-kHz Sampling-Frequency Support; (6)I2C-Compatible and SPI-Compatible Serial-Port Protocols; (7)Glueless Interface to TI McBSPs; (8)I2S-Compatible Interface Requiring Only One McBSP for both ADC and DAC; (9)Standard I2S, MSB, or LSB Justified-Data Transfers; (10)16/20/24/32-Bit Word Lengths; (11)Audio Master/Slave Timing Capability Optimized for TI DSPs (250/272 fs), USB mode; (12)Industry-Standard Master/Slave Support Provided Also (256/384 fs), Normal mode; (13)Glueless Interface to TI McBSPs; (14)Low-Noise MICBIAS pin at 3/4 AVDD for Biasing of Electret Capsules; (15)Integrated Buffer Amplifier With Tunable Fixed Gain of 1 to 5; (16)Additional Control-Register Selectable Buffer Gain of 0 dB or 20 dB.

Diagrams

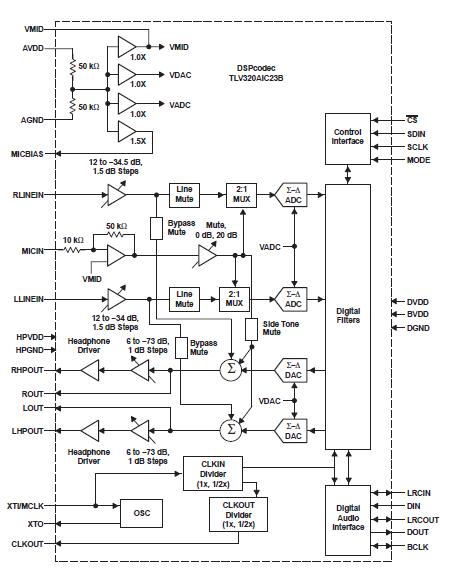

TLV320AIC23BRHDR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

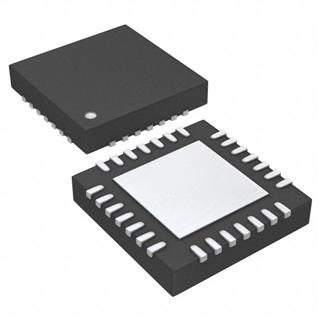

TLV320AIC23BRHDR
TLV320AIC23BRHDR

Texas Instruments

Audio CODECs Lo-Pwr Highly Integrated Codec

Data Sheet

0-2260: $2.67
2260-3000: $2.57
TLV320AIC23BRHDRG4
TLV320AIC23BRHDRG4

Texas Instruments

Audio CODECs Lo-Pwr Highly Integrated Codec

Data Sheet

0-2405: $2.51
2405-3000: $2.48
