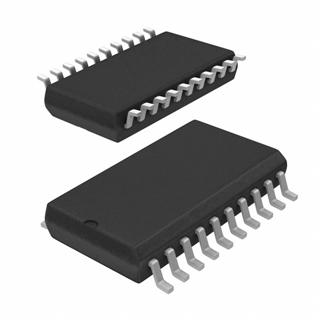

Product Summary
The TLV2556IDW is a 12-bit, switched-capacitor, successive-approximation, analog-to-digital converter. The ADC has three control inputschip select (CS), the input-output clock, and the address/control input, designed for communication with the serial port of a host processor or peripheral through a serial 3-state output. The TLV2556IDW is characterized for operation from TA = –40℃ to 85℃.
Parametrics
TLV2556IDW absolute maximum ratings: (1)Supply voltage (VDD to GND): –0.5 V to 6.5 V; (2)Input voltage range, VI (any input): –0.3 V to VCC + 0.3 V; (3)Peak input current, II (any input): ±20 mA; (4)Peak total input current (all inputs): ±30mA; (5)Operating free-air temperature range, TA: –40℃ to 85℃; (6)Storage temperature range, Tstg: –65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV2556IDW features: (1)12-Bit-Resolution A/D Converter; (2)11 Analog Input Channels; (3)3 Built-In Self-Test Modes; (4)Programmable Reference (2.048/4.096 V Internal, External); (5)Inherent Sample and Hold Function; (6)On-Chip Conversion Clock;(7)Unipolar or Bipolar Output Operation; (8)Programmable Power Down; (9)Programmable Output Data Length.

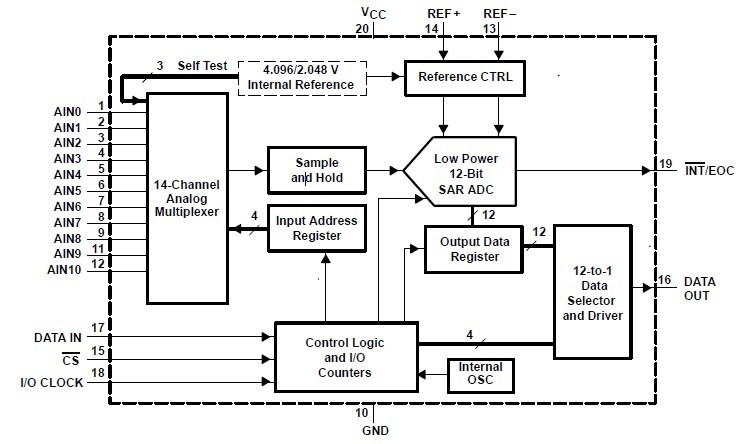

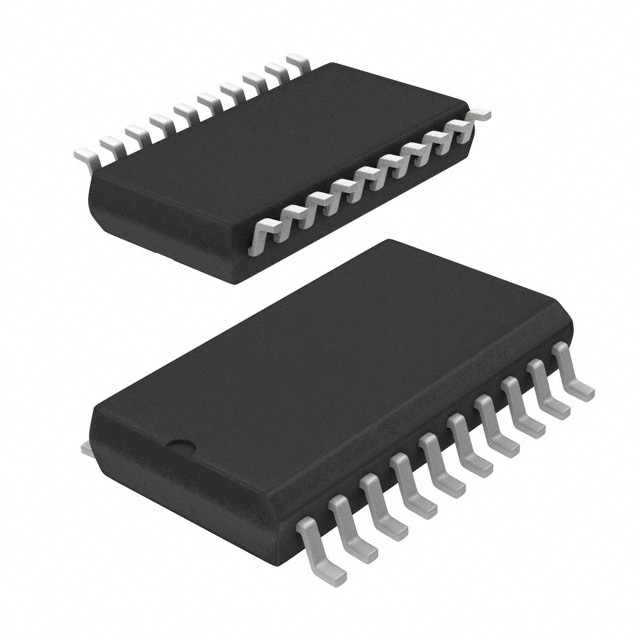

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV2556IDW |
Texas Instruments |
ADC (A/D Converters) 12-Bit 200 KSPS 11 Ch Lo-Pwr |
Data Sheet |
|
|
||||||||||||
|
TLV2556IDWG4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 200 KSPS 11 Ch Lo-Pwr |
Data Sheet |
|
|
||||||||||||
|
TLV2556IDWR |
Texas Instruments |
ADC (A/D Converters) 12-Bit 200 KSPS 11 Ch Lo-Pwr |
Data Sheet |
|
|
||||||||||||
|
TLV2556IDWRG4 |
Texas Instruments |
ADC (A/D Converters) 12B 200 KSPS 11Ch Lo Pwr Serial ADC |
Data Sheet |
|
|
||||||||||||
