Product Summary

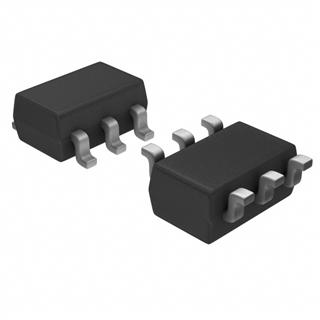

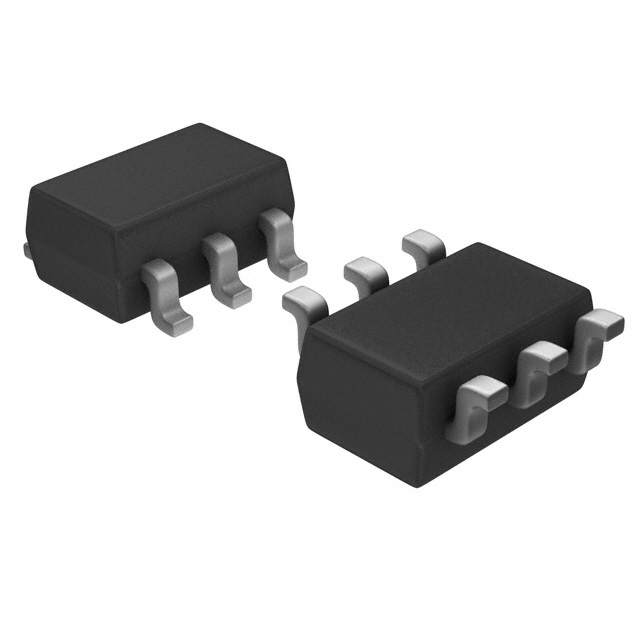

The TLV2470IDBVR is a CMOS rail-to-rail input/output operational amplifier that establishes a new performance point for supply current versus ac performance. The device consumes just 600 μA/channel while offering 2.8 MHz of gain-bandwidth product. Along with increased ac performance, the amplifier provides high output drive capability, solving a major shortcoming of older micropower operational amplifiers. The TLV2470IDBVR can swing to within 180 mV of each supply rail while driving a 10-mA load. For non-RRO applications, the TLV2470IDBVR can supply ±35 mA at 500 mV off the rail. Both the inputs and outputs swing rail-to-rail for increased dynamic range in low-voltage applications.
Parametrics
TLV2470IDBVR absolute maximum ratings: (1)Supply voltage, VDD: 7 V; (2)Differential input voltage, VID: ±VDD; (3)Continuous total power dissipation: See Dissipation Rating Table; (4)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃; I suffix: -40℃ to 125℃; (5)Maximum junction temperature, TJ: 150℃; (6)Storage temperature range, Tstg: -65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV2470IDBVR features: (1)CMOS Rail-To-Rail Input/Output; (2)Input Bias Current: 2.5 pA; (3)Low Supply Current: 600 μA/Channel; (4)Ultra-Low Power Shutdown Mode, IDD(SHDN): 350 nA/ch at 3 V; IDD(SHDN): 1000 nA/ch at 5 V; (5)Gain-Bandwidth Product: 2.8 MHz; (6)High Output Drive Capability, ±10 mA at 180 mV; ±35 mA at 500 mV; (7)Input Offset Voltage: 250 μV (typ); (8)Supply Voltage Range: 2.7 V to 6 V; (9)Ultra Small Packaging, 5 or 6 Pin SOT-23 (TLV2470/1); 8 or 10 Pin MSOP (TLV2472/3).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV2470IDBVR |
Texas Instruments |
Operational Amplifiers - Op Amps Sngl Lo-Pwr R-to-R I/O Op Amp w/Shutdwn |
Data Sheet |
|
|
||||||||||||
|
TLV2470IDBVRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Sngl Lo-Pwr R-to-R I/O Op Amp w/Shutdwn |
Data Sheet |
|
|
||||||||||||
