Product Summary
The THS7327PHPR is a low-power, single-supply 2.7-V to 5-V, 3-channel integrated video buffer with H and V Sync signal paths. The THS7327PHPR incorporates a selectable 5th order Butterworth anti-aliasing filter on each channel. The 9-MHz is a perfect choice for SDTV video including composite, S-Video, and 480i/576i. The 16-MHz filter is ideal for EDTV 480p/576p, and VGA signals. The applications of the THS7327PHPR include Projectors, Professional Video Systems, LCD/DLP/LOCS Input Buffering.
Parametrics
THS7327PHPR absolute maximum ratings: (1)VSS Supply voltage, VS+ to GND: 5.5 V; (2)VI Input voltage: –0.4 V to VS+; (3)IO Output current: ±100 mA; (4)Continuous power dissipation: See Dissipation Rating Table; (5)TJ Maximum junction temperature, any condition(2): 150℃; (6)TJ Maximum junction temperature, continuous operation, long term reliability(3): 125℃; (7)Tstg Storage temperature range: –65 to 150℃; (8)HBM: 1500V; (9)ESD ratings CDM: 1500V; (10)MM: 100V.
Features
THS7327PHPR features: (1)HV Sync Paths With Adj. Schmitt Trigger; (2)2:1 Input MUX; (3)I2C Control of All Functions; (4)Integrated Low-Pass Filters on ADC Buffers; (5)Selectable Input Bias Modes; (6)2.7-V to 5-V Single Supply Operation; (7)Low 330 mW at 3.3-V Power Consumption; (8)Disable Function Reduces Current to ＜1μA; (9)RoHS TQFP Package.

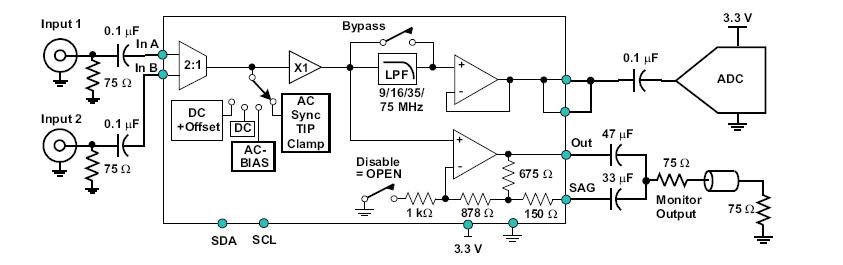

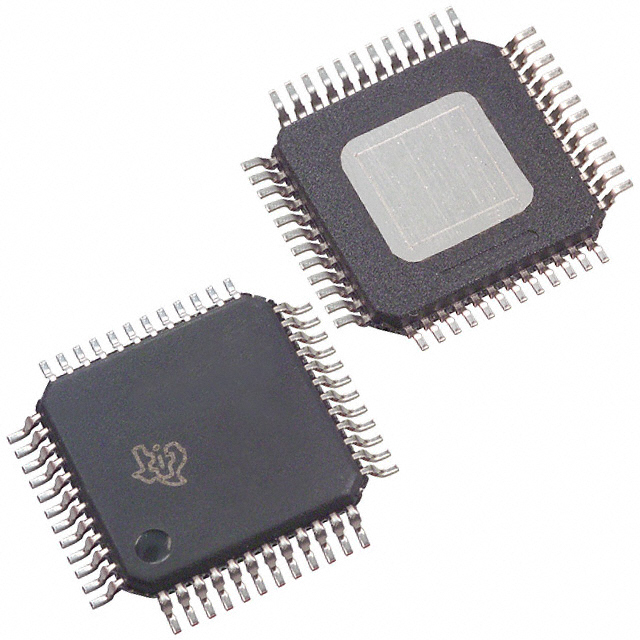

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS7327PHPR |
Texas Instruments |
Video Amplifiers 3-Ch RGBHV Video Buffer |
Data Sheet |
|
|
||||||||||
|
THS7327PHPRG4 |
Texas Instruments |
Video Amplifiers 3-Ch RGBHV Video Buffer |
Data Sheet |
|
|
||||||||||
