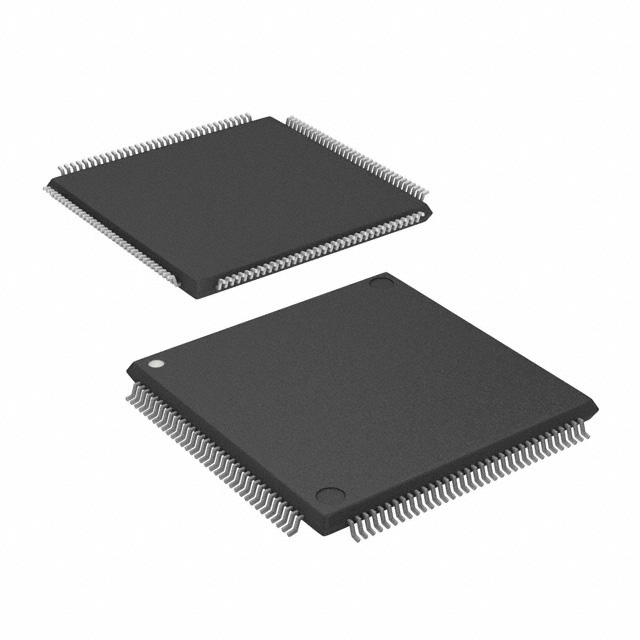

STR710FZ2T6

STR710FZ2T6, ARM-powered 32-bit Microcontroller, LQFP, -0.3 to 2.0V, 25mV, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.11~9.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.11~9.45

PartNumber:: STR710FZ2T6

Brand:: STMicroelectronics - ST | Pack: LQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:STR710FZ2T6
US $4.11 - 9.45
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

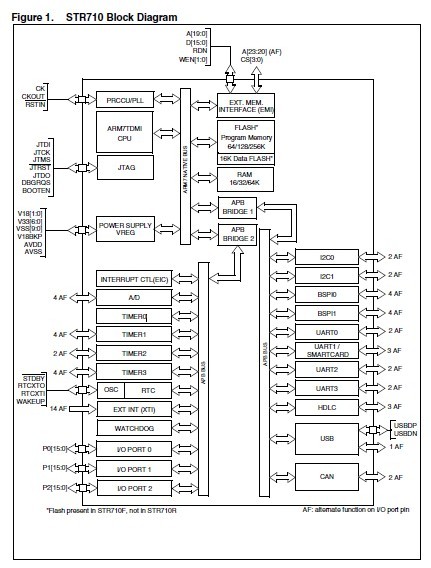

The STR710FZ2T6 is an ARM-powered 32-bit Microcontroller with embedded Flash and RAM. It combines the high performance ARM7TDMI CPU with an extensive range of peripheral functions and enhanced I/O capabilities. STR710FZ2T6 device has on-chip high-speed single voltage FLASH memory and high-speed RAM. STR710FZ2T6 device has high-speed RAM but no internal Flash. The STR710FZ2T6 has an embedded ARM core and is therefore compatible with all ARM tools and software.

Parametrics

STR710FZ2T6 absolute maximum ratings: (1)V33- VSS External 3.3V Supply voltage(including AVDD and V33IOPLL): -0.3 to 4.0V; (2)V18BKP - VSSBKP: -0.3 to 2.0V; (3)VIN Input voltage on true open drain pin (P0.10) 1): VSS-0.3 to +5.5; (4)Input voltage on any other pin: VSS-0.3 to V33+0.3; (5)|ΔV33x| Variations between different 3.3V power pins: 50V; (6)|ΔV18x| Variations between different 1.8V power pins: 25mV; (7)|VSSX - VSS| Variations between all the different ground pins: 50mV.

Features

STR710FZ2T6 features: (1)ARM7TDMI 32-bit RISC CPU; (2)59 MIPS @ 66 MHz from SRAM; (3)45 MIPS @ 50 MHz from Flash; (4)Up to 256Kbytes Flash program memory (10 kcycles endurance, 20 yrs retention @ 85℃); (5)16K bytes Flash data memory (100 kcycles endurance, 20 yrs retention@ 85℃); (6)Up to 64 Kbytes RAM; (7)External Memory Interface (EMI) for up to 4 banks of SRAM, Flash, ROM; (8)Multi-boot capability; (9)3.0 to 3.6V application supply and I/Os; (10)Internal 1.8V regulator for core supply; (11)Clock input from 0 to 16.5 MHz; (12)Embedded RTC oscillator running from external 32 kHz crystal; (13)Embedded PLL for CPU clock; (14)Realtime Clock for clock-calendar function; (15)5 power saving modes: SLOW, WAIT, LPWAIT, STOP and STANDBY modes.
