Product Summary
The SGA-2163Z is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring one-micron emitters provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. Only two DC-blocking capacitors, a bias resistor, and an optional RF choke are required for operation. The applications of the SGA-2163Z include PA Driver Amplifier, Cellular, PCS, GSM, UMTS, IF Amplifier, Wireless Data, Satellite.
Parametrics
SGA-2163Z absolute maximum ratings: (1)Max Device Current (ID): 40mA; (2)Max Device Voltage (VD): 4V; (3)Max RF Input Power: +18dBm; (4)Max Junction Temperature (TJ): +150℃; (5)Operating Temperature Range (TL): -40 to +85℃; (6)Max Storage Temperature: +150℃.
Features
SGA-2163Z features: (1)Broadband Operation: DC to 5000MHz; (2)Cascadable 50O; (3)Operates from Single Supply; (4)Low Thermal Resistance Package.

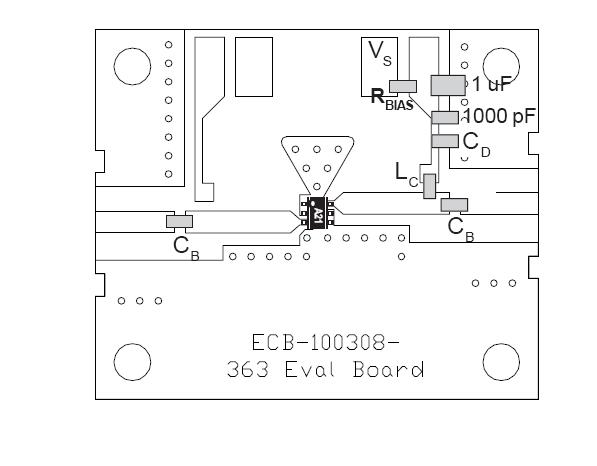

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SGA-2163Z |
|
IC AMP HBT SIGE 5000MHZ SOT-363 |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
|
SGA-0163 |
|
IC AMP HBT SIGE 4500MHZ SOT-363 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
SGA-0163(Z) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
SGA-0163Z |
|
IC AMP HBT SIGE 4500MHZ SOT-363 |
Data Sheet |
|
|
||||||||||||||||||
|
SGA-0363 |
|
IC AMP HBT SIGE 5000MHZ SOT-363 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
SGA-0363(Z) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
SGA-0363Z |
|
IC AMP HBT SIGE 5000MHZ SOT-363 |
Data Sheet |
|
|
||||||||||||||||||
