Product Summary

The S202S02 is a SIP Type SSR for Medium Power Control. The applications of the S202S02 include Automatic vending machines, programmable controllers, Amusement equipment.

Parametrics

S202S02 absolute maximum ratings: (1)Forward current IF: 50mA; (2)Reverse voltage: 6V; (3)RMS ON-state current IT: 8A; (4)Peak one cycle surge current I surge: 80A; (5)Repetitive peak OFF-state voltage: 600V; (6)Non-repetitive peak OFF-state voltage: 600V; (7)Operating frequency: 45 to 65 Hz; (8)Isolation voltage Viso: 4000Vrms; (9)Operating temperature Topr: - 25 to + 100℃; (10)Storage temperature Tstg: - 30 to + 125℃; (11)Soldering temperature Tsol: 260℃.

Features

S202S02 features: (1)High radiation resin mold package; (2)RMS ON-state current IT : 8 Arms at TC≤80℃ ( With heat sink ); (3)Built-in zero-cross circuit (S102S02/S202S02 ); (4)High repetitive peak OFF-state voltage; (5)Isolation voltage between input and output.

Diagrams

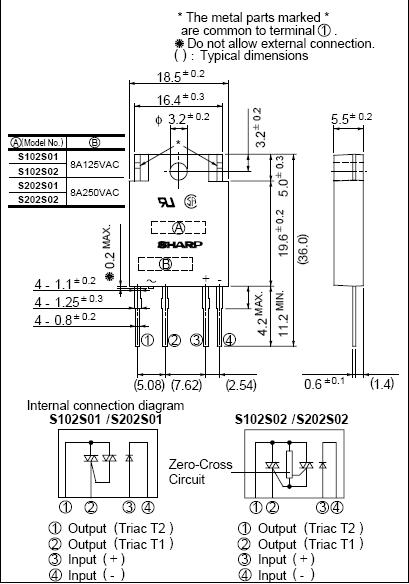

S202S02 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S202S02F
S202S02F
Sharp Microelectronics
Solid State Relays 4-SIP ZERO-C 8mA
Data Sheet
0-1: $2.99
1-10: $2.71
10-25: $2.52
25-50: $2.20
S202S02
S202S02

RELAY SSR 240VAC 8A ZC 4-SIP
Data Sheet
Negotiable
