Product Summary
The PIC24HJ256GP210-I/PF is a High-Performance 16-Bit Microcontroller. The PIC24HJ256GP210-I/PF employs a powerful 16-bit microcontroller (MCU). The resulting CPU functionality is ideal for applications that rely on high-speed, repetitive computations, as well as control. Flexible and deterministic interrupt handling, coupled with a powerful array of peripherals, renders the PIC24H devices suitable for control applications.
Parametrics
PIC24HJ256GP210-I/PF absolute maximum ratings: (1)FLASH Memory Size: 262144 B; (2)Number of Pins: 100; (3)Clock Speed: 32.0 MHz, 40.0 MHz; (4)Supply Voltage (DC): 3.30 V, 3.60 V (max); (5)Lead-Free Status: Lead Free; (6)Packaging: Bulk; (7)Case / Package / Footprint: TQFP-100; (8)Memory Size: 256000 B; (9)RAM Memory Size: 16384 B; (10)Mounting Type: Surface Mount; (11)Number of I/O Pins: 85; (12)RoHS Compliant.
Features
PIC24HJ256GP210-I/PF features: (1)Modified Harvard architecture; (2)C compiler optimized instruction set; (3)16-bit wide data path; (4)24-bit wide instructions; (5)Linear program memory addressing up to 4M instruction words; (6)Linear data memory addressing up to 64 Kbytes; (7)74 base instructions: mostly 1 word/1 cycle; (8)Sixteen 16-bit general-purpose registers; (9)Flexible and powerful addressing modes; (10)Software stack; (11)16 x 16 integer multiply operations; (12)32/16 and 16/16 divide operations; (13)Single-cycle multiply; (14)Up to ± 16-bit shifts; (15)5-cycle latency; (16)118 interrupt vectors; (17)Up to 61 available interrupt sources, up to 5 external interrupts; (18)7 programmable priority levels; (19)5 processor exceptions.

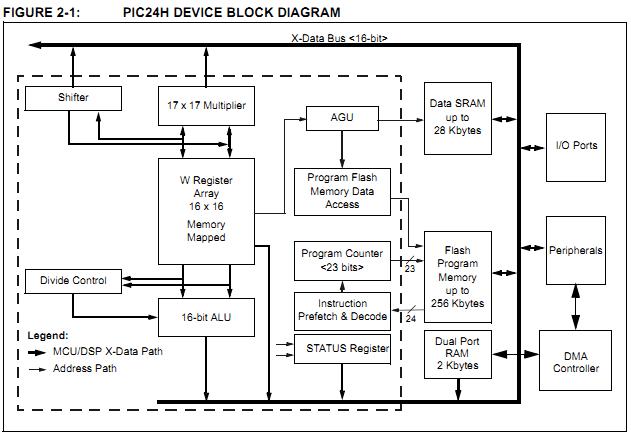

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC24HJ256GP210-I/PF |
Microchip Technology |
16-bit Microcontrollers (MCU) 40MIPS 256KB |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
PIC24EP128GP202-E/MM |
Microchip Technology |
16-bit Microcontrollers (MCU) 128KB FL 16KB RAM 60MHz 28Pin |
Data Sheet |
