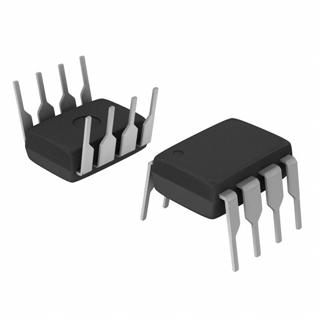

PIC12F629-I/P

DIP8, FLASH-Based, 8-Bit CMOS Microcontroller, 4 MHz, - 2.0V to 5.5V, PIC12F629-I/P

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.27~1.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.27~1.11

PartNumber:: PIC12F629-I/P

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:PIC12F629-I/P
US $0.27 - 1.11
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC12F629-I/P is a type of 8-Pin FLASH-Based 8-Bit CMOS Microcontroller, which has high performance RISC cpu, only 35 single word instructions to learn, all single cycle instructions except branches;operating speed is DC-20 MHz oscaillator/clock input and DC - 200 ns instruction cycle, interrupt capability.

Parametrics

PIC12F629-I/P absolute maximum ratings: (1)ambient temperature under bias:-40℃ to +125℃; (2)storage temperature ranges from 65℃ to+150℃; (3)voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)voltage on MCLR with respect to Vss: -0.3V to+13.5V; (5)voltage on all other pins with resp ect to VSS: -0.3V to (VDD + 0.3V); (6)total power dissipation: 800 mW;(7)maximum current out of VSS pin: 300 mA; (8)maximum output current sunk by any I/O pin:25 mA; (9)maximum output current sourced by any I/O pin: 25 mA.

Features

PIC12F629-I/P features: (1)internal and external oscillator options:precision Internal 4 MHz oscillator factory calibrated to ±1%,external oscillator support for crystals and resonators,5 μs wake-up from SLEEP,3.0V, typical;(2)power saving SLEEP mode;(3)wide operating voltage range- 2.0V to 5.5V;(4)industrial and extended temperat ure range;(5)low power power-on reset (POR);(6)6 I/O pins with individual direction control;(7)high current sink/ source for direct LED drive;(8)analog comparator module with:one analog comparator,programmable on-chip comp arator voltage reference(CVREF) module,programmable input multiplexing from device inputs,comparator output is externally accessible.
