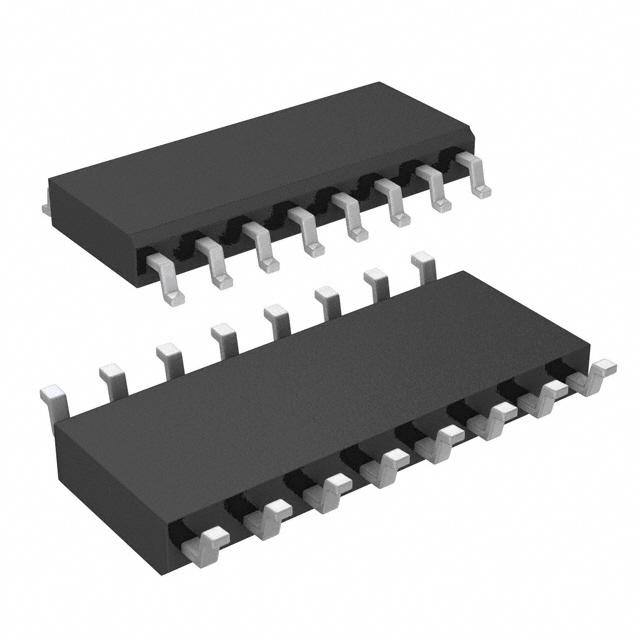

Product Summary

The OP467GSZ-REEL is a quad, high speed, precision operational amplifier. It offers the performance of a high speed op amp combined with the advantages of a precision operational amplifier all in a single package. The OP467GSZ-REEL is an ideal choice for applications where, traditionally, more than one op amp was used to achieve this level of speed and precision. The applications of the OP467GSZ-REEL are High Speed Image Display Drivers, High Frequency Active Filters, Fast Instrumentation Amplifiers, High Speed Detectors, Integrators, Photo Diode Preamps.

Parametrics

OP467GSZ-REEL absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Input Voltage:±18 V; (3)Differential Input Voltage:±26 V; (4)Output Short-Circuit Duration:Limited; (5)Storage Temperature Range:–65℃ to +150℃; (6)Operating Temperature Range:–40℃ to +85℃; (7)Junction Temperature Range:–65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec):300℃.

Features

OP467GSZ-REEL features: (1)High Slew Rate:170 V/μs; (2)Wide Bandwidth:28 MHz; (3)Fast Settling Time:<200 ns to 0.01%; (4)Low Offset Voltage:<500 μV; (5)Unity-Gain Stable; (6)Low Voltage Operation ±5 V to ±15 V; (7)Low Supply Current:<10 mA; (8)Drives Capacitive Loads.

Diagrams

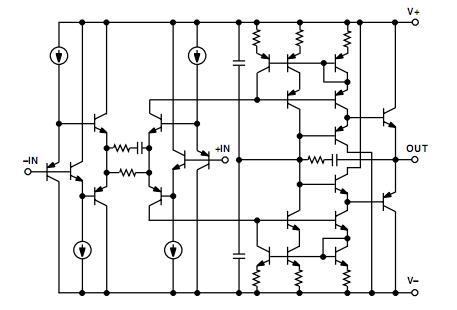

OP467GSZ-REEL circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP467GSZ-REEL
OP467GSZ-REEL

IC OPAMP GP 28MHZ QUAD 16SOIC
Data Sheet
0-1000: $5.59
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP462
OP462
Other

Data Sheet
Negotiable
OP462GS
OP462GS

IC OPAMP GP R-R 15MHZ LN 14SOIC
Data Sheet
0-56: $4.97
OP462GS-REEL
OP462GS-REEL

IC OPAMP GP R-R 15MHZ LN 14SOIC
Data Sheet
0-2500: $3.23
OP462GS-REEL7
OP462GS-REEL7

IC OPAMP GP R-R 15MHZ LN 14SOIC
Data Sheet
0-1000: $3.27
OP462GSZ
OP462GSZ

IC OPAMP GP R-R 15MHZ LN 14SOIC
Data Sheet
0-1: $5.36
1-10: $4.82
10-100: $3.97
100-250: $3.64
250-500: $3.32
500-1000: $2.89
1000-2500: $2.86
OP462GSZ-REEL
OP462GSZ-REEL

IC OPAMP GP R-R 15MHZ LN 14SOIC
Data Sheet
0-2500: $2.86
