Product Summary
The MIC5209-5.0BS is an efficient linear voltage regulator with very low dropout voltage, typically 10mV at light loads and less than 500mV at full load, with better than 1% output voltage accuracy. Designed especially for hand-held, battery-powered devices, the MIC5209-5.0BS features low ground current to help prolong battery life. An enable/shutdown pin on SO-8 and TO-263-5 versions can further improve battery life with near-zero shutdown current. The applications of the MIC5209-5.0BS include Pentium II Slot 1 and Slot 2 support circuits, Laptop, notebook, and palmtop computers, Cellular telephones, Consumer and personal electronics, SMPS post-regulator/dc-to-dc modules and High-efficiency linear power supplies.
Parametrics
MIC5209-5.0BS absolute maximum ratings: (1)Supply Input Voltage (VIN): -20V to +20V; (2)Power Dissipation (PD): Internally Limited;(3)Junction Temperature (TJ): all except 1.8V: –40℃ to +125℃; 1.8V only: 0℃ to +125℃ ; (4)Lead Temperature (soldering, 5 sec.):260℃ ; (5)Storage Temperature (TS): –65℃ to +150℃.
Features
MIC5209-5.0BS features: (1)Meets Intel Slot 1 and Slot 2 requirements; (2)Guaranteed 500mA output over the full operating temperature range; (2)Low 500mV maximum dropout voltage at full load; (3)Extremely tight load and line regulation; (4)Thermally-effi cient surface-mount package; (5)Low temperature coeffi cient; (6)Current and thermal limiting; (7)Reversed-battery protection; (8)No-load stability; (9)1% output accuracy; (10)Ultra-low-noise capability in SO-8 and TO-263-5.

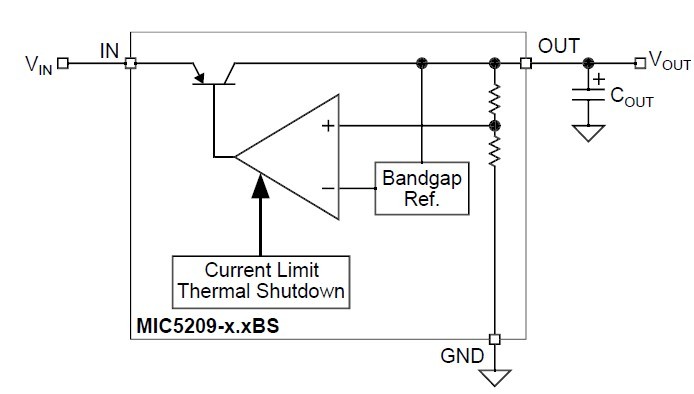

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

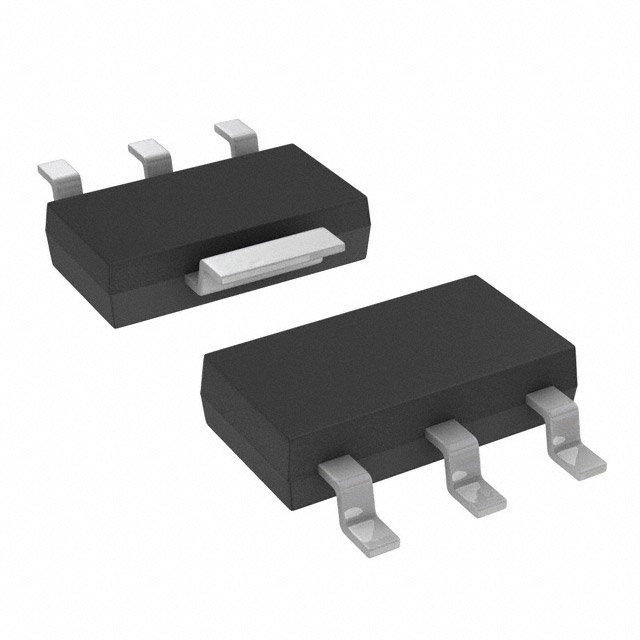

 MIC5209-5.0BS |
|
IC REG LDO 5V .5A SOT223 |
Data Sheet |
Negotiable |
|
||||
|
MIC5209-5.0BS TR |
|
IC REG LDO 5V .5A SOT-223 |
Data Sheet |
Negotiable |
|
||||
