MAX913ESA+T

Product Summary

The MAX913ESA+T single high-speed, low-power comparator has differential inputs and complementary TTL outputs. Fast propagation delay (10ns typ), extremely low supply current, and a wide common-mode input range that includes the negative rail make the MAX913ESA+T ideal for low-power, high-speed, single +5V (or ±5V) applications such as V/F converters or switching regulators. The MAX913ESA+T outputs remain stable through the linear region. This feature eliminates output instability common to high-speed comparators when driven with a slow-moving input signal. The MAX913ESA+T can be powered from a single +5V supply or a ±5V split supply. The MAX913ESA+T is an improved plug-in replacement for the LT1016. It provides significantly wider input voltage range and equivalent speed at a fraction of the power.

Parametrics

MAX913ESA+T absolute maximum ratings: (1)Positive Supply Voltage: 7V; (2)Negative Supply Voltage: -7V; (3)Differential Input Voltage: ±15V; (4)Input Voltage (Referred to V-): - 0.3V to 15V; (5)Latch Pin Voltage: Equal to Supplies; (6)Continuous Output Current: ±20mA; (7)Continuous Power Dissipation (TA = +70℃), 8-Pin Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; 8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; 8-Pin CERDIP (derate 8.00mW/℃ above +70℃): 640mW; 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; 16-Pin Narrow SO (derate 8.70mW/℃ above +70℃): 696mW; 16-Pin CERDIP (derate 10.00mW/℃ above +70℃): 800mW; (8)Operating Temperature Ranges: MAX91_ C: 0℃ to +70℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX913ESA+T features: (1)Ultra Fast (10ns); (2)Single +5V or Dual ±5V Supply Operation; (3)Input Range Extends Below Negative Supply; (4)Low Power: 6mA (+5V) Per Comparator; (5)No Minimum Input Signal Slew-Rate Requirement; (6)No Power-Supply Current Spiking; (7)Stable in the Linear Region; (8)Inputs Can Exceed Either Supply; (9)Low Offset Voltage: 0.8mV.

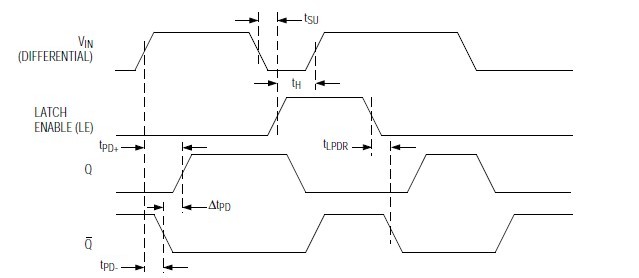

Diagrams
