Product Summary
The MAX4595DBVR is a precision, dual analog switch designed to operate from a single +2.7V to +12V supply. Low power consumption (5uW) makes the MAX4595DBVR ideal for battery-powered equipment. These switches offer low leakage currents (100pA max) and fast switching speeds (tON = 150ns max, tOFF = 100ns max). The applications of the MAX4595DBVR are (1)Battery-Operated Systems; (2)Sample-and-Hold Circuits; (3)Heads-Up Displays; (4)Guidance and Control ; (5)Systems; (6)Audio and Video; (7)Switching; (8)Military Radios; (9)Test Equipment; (10)Communications Systems; (11)+3V/+5V DACs and ADCs; (12)PBX, PABX; (13)Cell Phones; (14)Ultrasound; (15)Pagers.
Parametrics
MAX4595DBVR absolute maximum ratings: (1)Voltage Referenced to GND, V+: -0.3V to +13V; IN_, COM_, NC_, NO_: -0.3V to (V+ + 0.3V); Continuous Current (any terminal): ±10mA; Peak Current, COM_, NO_, NC_ (pulsed at 1ms, 10% duty cycle max): ±20mA; (2)ESD per Method 3015.7: >2000V; (3)Continuous Power Dissipation: 571mW; (4)Operating Temperature Ranges: 0 to +70℃; (5)Storage Temperature Range: -65 to +150℃; (6)Lead Temperature (soldering, 10s): +300℃.
Features
MAX4595DBVR features: (1)Low RON: 60Ω max (33Ω typ); (2)RON Matching Between Channels: 2Ω max; (3)RON Flatness: 6Ω max; (4)Guaranteed Charge Injection: 5pC max; (5)+2.7V to +12V Single-Supply Operation; (6)Low Power Consumption: <5μW; (7)Low Leakage Current Over Temperature: 10nA max at +85℃; (8)Fast Switching: tON = 35ns, tOFF = 25ns; (9)Guaranteed Break-Before-Make ; (10)TTL/CMOS-Logic Compatible; (11)Pin Compatible with MAX323/MAX324/MAX325; (12)Available in SOT23-6.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

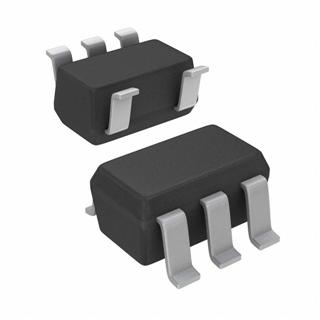

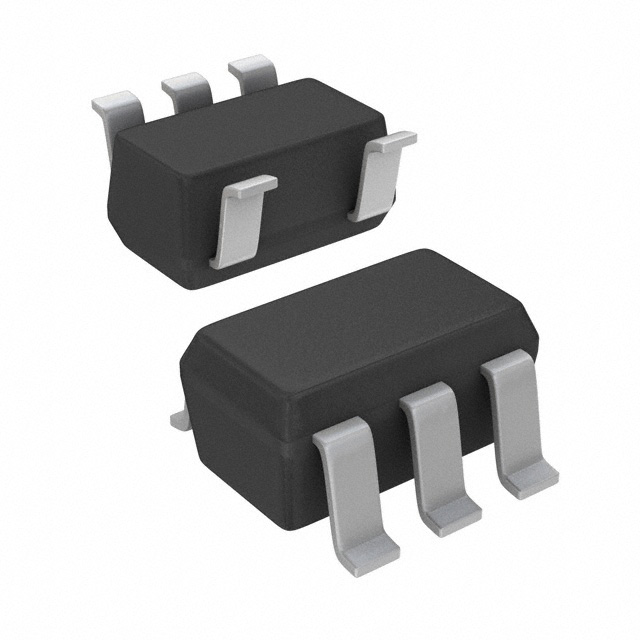

 MAX4595DBVR |
Texas Instruments |
Analog Switch ICs Sngl-Ch 10-Ohm SPST Analog Switch |
Data Sheet |
|
|
||||||||||||
|
MAX4595DBVRE4 |
Texas Instruments |
Analog Switch ICs Sngl-Ch 10-Ohm SPST Analog Switch |
Data Sheet |
|
|
||||||||||||
|
MAX4595DBVRG4 |
Texas Instruments |
Analog Switch ICs Sgl-Ch 10O SPST Ana Sw |
Data Sheet |
|
|
||||||||||||
