LTC5509ESC6#TRPBF

RF power detector, SOT, –0.3V to 6.5V, LTC5505-2ES5#TRPBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.15~2.87 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.15~2.87

PartNumber:: LTC5509ESC6#TRPBF

Brand:: Linear Technology - Linear | Pack: SC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LTC5509ESC6#TRPBF
US $1.15 - 2.87
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

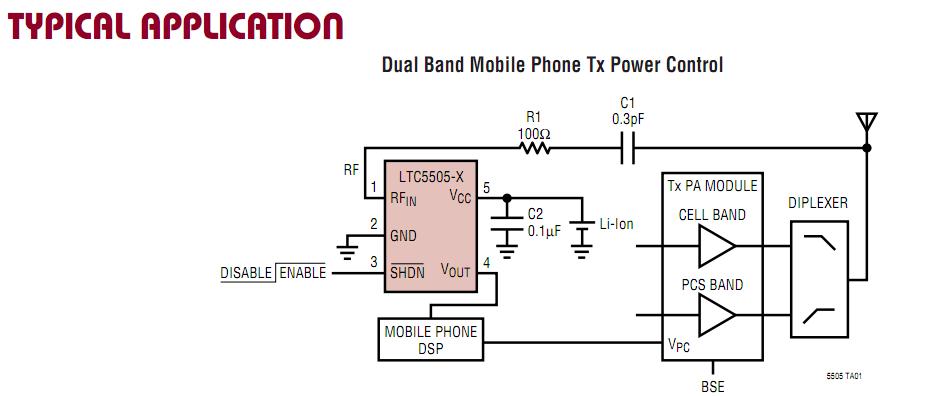

The LTC5505-2ES5#TRPBF is an RF power detector for RF applications operating in the 300MHz to 3.5GHz range. A temperature compensated Schottky diode peak detector and buffer amplifier are combined in a small 5-pin ThinSOT package. The supply voltage range is optimized for operation from a single lithium-ion cell or 3xNiMH. The applications of the LTC5505-2ES5#TRPBF are (1)Multimode Mobile Phone Products; (2)PCS Devices; (3)Wireless Data Modems; (4)Wireless and Cable Infrastructure; (5)RF Power Alarm; (6)Envelope Detector.

Parametrics

LTC5505-2ES5#TRPBF absolute maximum ratings: (1)VCC, VOUT to GND: –0.3V to 6.5V; (2)RF Voltage: (VCC – 2.6V) to 7V; (3)SHDN Voltage to GND: –0.3V to (VCC + 0.3V); (4)Operating Temperature Range: – 40 to 85℃; (5)Maximum Junction Temperature: 125℃; (6)Storage Temperature Range: – 65 to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC5505-2ES5#TRPBF features: (1)Internal Schottky Diode RF Detector with Two Input Power Ranges:–28dBm to 18dBm; (2)Wide Input Frequency Range: 300MHz to 3GHz; (3)Temperature Compensated; (4)Buffered Detector Output; (5)Wide VCC Range of 2.7V to 6V; (6)Low Operating Current: 0.5mA; (7)Low Shutdown Current: <2μA; (8)Low Profile (1mm) ThinSOT Package.
