LTC1772CS6#TRPBF

DC/DC converter, SOT, –0.3V to 6V, LTC1772CS6#TRPBF, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.35~3.38 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.35~3.38

PartNumber:: LTC1772CS6#TRPBF

Brand:: Linear Technology - Linear | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LTC1772CS6#TRPBF
US $1.35 - 3.38
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

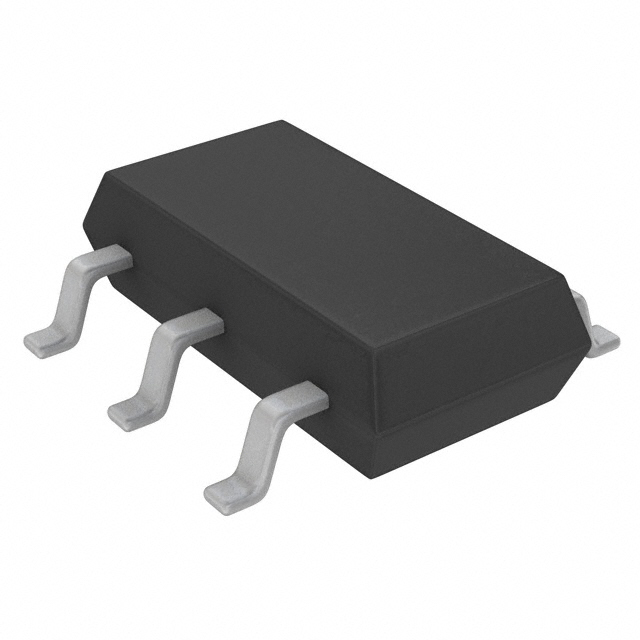

The LTC1772CS6#TRPBF is a 5-lead SOT-23 step down, current mode, DC/DC converter. Intended for small to medium power applications, it operates from 2.5V to 5.5V input voltage range and switches at 1MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. The output voltage is adjustable from 1.25V to 5V. A built-in 0.28Ω switch allows up to 0.5A of output current at high efficiency. OPTI-LOOPTM compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The applications of the LTC1772CS6#TRPBF are (1)PDAs/Palmtop PCs; (2)Digital Cameras; (3)Cellular Phones; (4)Portable Media Players; (5)PC Cards; (6)Handheld Equipment.

Parametrics

LTC1772CS6#TRPBF absolute maximum ratings: (1)(Voltages Referred to GND Pin), VIN Voltage (Pin 5): –0.3V to 6V; (2)ITH/RUN Voltage (Pin 4):–0.3V to 3V; (3)VFB Voltage (Pin 3):–0.3V to 3V; (4)Peak Switch Current (Pin 1): 1.3A; (5)VIN – SW (Max Switch Voltage): 8.5V to –0.3V; (6)Operating Temperature Range: –40 to 85℃; (7)Junction Temperature: 125℃; (8)Storage Temperature Range: –65 to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1772CS6#TRPBF features: (1)Tiny 5-Lead SOT-23 Package; (2)Uses Tiny Capacitors and Inductor; (3)High Frequency Operation: 1MHz; (4)High Output Current: 500mA; (5)Low RDS(ON) Internal Switch: 0.28Ω; (6)High Efficiency: Up to 94%; (7)Current Mode Operation for Excellent Line and Load Transient Response; (8)Short-Circuit Protected; (9)Low Quiescent Current: 135μA; (10)Low Dropout Operation: 100% Duty Cycle; (11)Ultralow Shutdown Current: IQ < 1μA; (12)Peak Inductor Current Independent of Inductor Value; (13)Output Voltages from 5V Down to 1.25V.
