LM3704XBMMX-463

microprocessor supervisory circuit, MSOP10, -0.3V to 6.0V, LM3704XBMMX-463

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.19~0.71 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.19~0.71

PartNumber:: LM3704XBMMX-463

Brand:: National Semiconductor - NS | Pack: MSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LM3704XBMMX-463
US $0.19 - 0.71
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

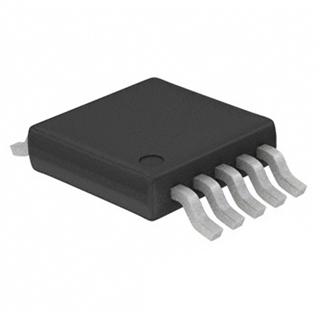

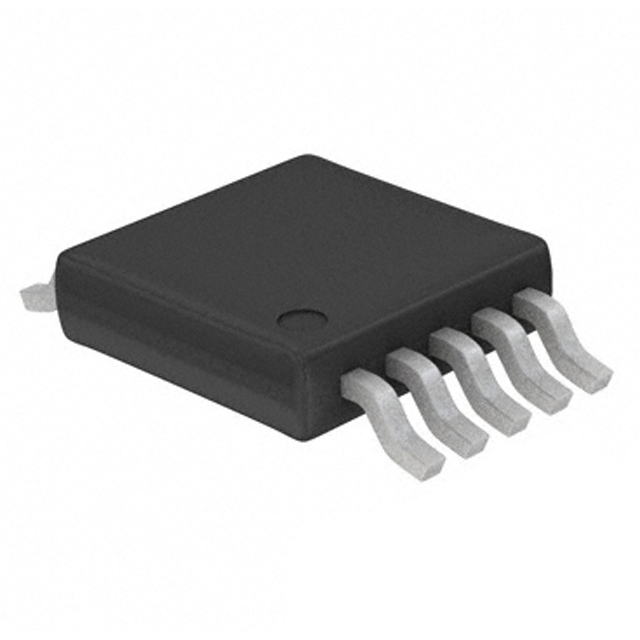

The LM3704XBMMX-463 is a microprocessor supervisory circuit. It provides the maximum flexibility for monitoring power supplies and battery controlled functions in systems without backup batteries. The LM3704XBMMX-463 is available in MSOP-10 and 9-bump micro SMD packages. The applications of the device are (1)Embedded Controllers and Processors; (2)Intelligent Instruments; (3)Automotive Systems; (4)Critical μP Power Monitoring.

Parametrics

LM3704XBMMX-463 absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to 6.0V; (2)All Other Inputs: -0.3V to VCC + 0.3V; (3)ESD Ratings, Human Body Model: 1.5kV; Machine Model: 150V; (4)Temperature Range, Tj: -40 to 85℃.

Features

LM3704XBMMX-463 features: (1)Standard Reset Threshold voltage: 3.08V; (2)Custom Reset Threshold voltages: For other voltages between 2.2V and 5.0V in 10mV increments, contact National Semiconductor Corp.; (3)No external components required; (4)Manual-Reset input; (5)RESET (LM3704) or RESET (LM3705) outputs; (6)Precision supply voltage monitor; (7)Factory programmable Reset Timeout Delay; (8)Separate Power Fail comparator; (9)Available in micro SMD package for minimum footprint; (10)±0.5% Reset threshold accuracy at room temperature; (11)±2% Reset threshold accuracy over temperature extremes; (12)Reset assertion down to 1V VCC (RESET option only); (13)28 μA VCC supply current.
