Product Summary
The LM3401MM/NOPB is a switching controller designed to provide constant current to high power LEDs. The LM3401 drives an external P-MOSFET switch for step-down (Buck) regulators. The LM3401MMX delivers constant current within ±6% accuracy to a wide variety and number of series connected LEDs. Output current is adjusted with an external current sensing resistor to drive high power LEDs in excess of 1A. The applications of the LM3401MM/NOPB include LED Driver and Battery Charger.
Parametrics
LM3401MM/NOPB absolute maximum ratings: (1)VIN: -0.3V to 36V; (2)CS: -2.0V to 36V; (3)SNS: -0.3V to 8V; (4)ILIM: -0.3V to 36V; (5)DIM: -0.3V to 36V; (6)HYS: -0.3V to 4V; (7)Storage Temperature: -65 to +150℃; (8)Lead Temperature, Vapor Phase (60sec): 215℃; Infrared (15sec): 220℃; (9)ESD Rating: 2.5kV.
Features
LM3401MM/NOPB features: (1)Hysteretic Control for Speed and Simplicity; (2)Input Operating Range of 4.5V-35V; (3)1.5MHz maximum switching frequency; (4)Low 200mV reference voltage; (5)Programmable current limit; (6)High speed CMOS compatible enable/dimming; (7)Adjustable hysteresis; (8)Input UVLO; (9)No output capacitor required; (10)MSOP-8 package.

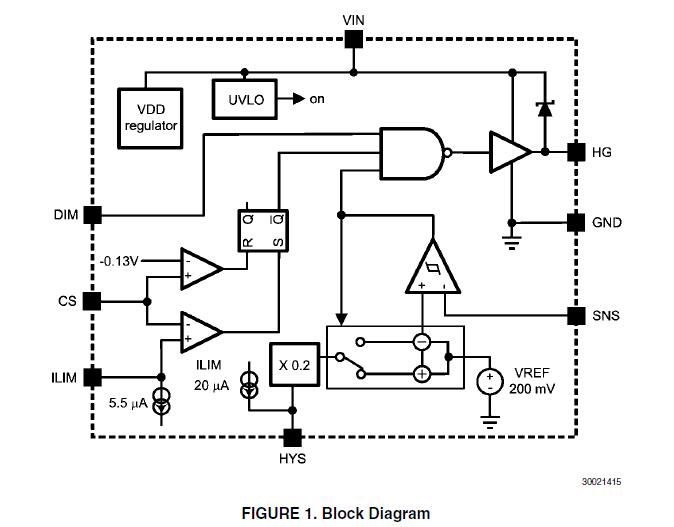

Diagrams

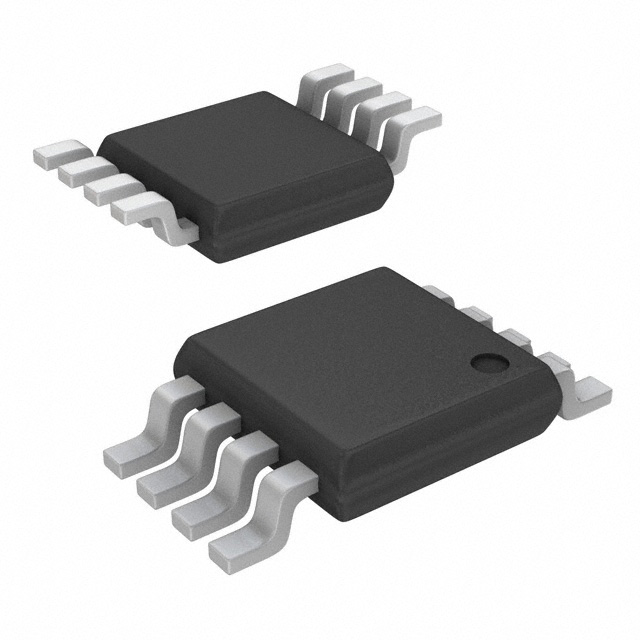

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LM3401MM/NOPB |
National Semiconductor (TI) |
LED Lighting Drivers HYSTERETIC PFET CONTROLLER |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
LM34 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
LM340 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
LM3401EVAL |
BOARD EVALUATION FOR LM3401 |
Data Sheet |
|
|
||||||||||||||
LM3401EVAL/NOPB |
National Semiconductor (TI) |
LED Lighting Development Tools LM3401 EVAL BOARD |
Data Sheet |
|
|
|||||||||||||
LM3401MM/NOPB |
National Semiconductor (TI) |
LED Lighting Drivers HYSTERETIC PFET CONTROLLER |
Data Sheet |
|
|
|||||||||||||
LM3401MMX/NOPB |
National Semiconductor (TI) |
LED Lighting Drivers |
Data Sheet |
|
|
