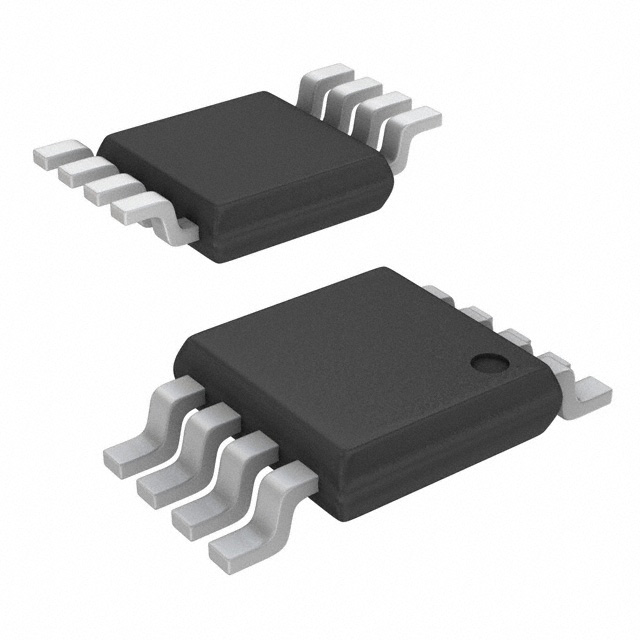

LM3401MMX/NOPB

switching controller, 8-MSOP, 1.5MHz, RoHS Compliant, single output, -0.3V to 36V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.17~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.17~0.55

PartNumber:: LM3401MMX/NOPB

Brand:: National Semiconductor - NS | Pack: MSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LM3401MMX/NOPB
US $0.17 - 0.55
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

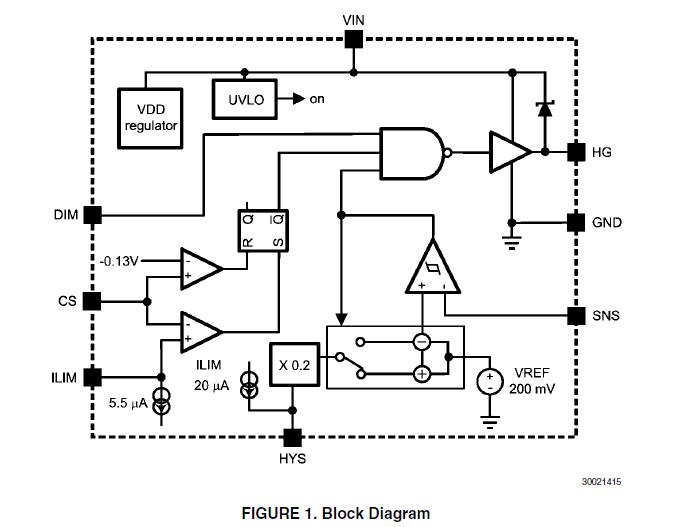

The LM3401MMX/NOPB is a switching controller designed to provide constant current to high power LEDs. The LM3401 drives an external P-MOSFET switch for step-down (Buck) regulators. The LM3401MMX/NOPB delivers constant current within ±6% accuracy to a wide variety and number of series connected LEDs. Output current is adjusted with an external current sensing resistor to drive high power LEDs in excess of 1A. The applications of the LM3401MMX/NOPB include LED Driver and Battery Charger.

Parametrics

LM3401MMX/NOPB absolute maximum ratings: (1)VIN: -0.3V to 36V; (2)CS: -2.0V to 36V; (3)SNS: -0.3V to 8V; (4)ILIM: -0.3V to 36V; (5)DIM: -0.3V to 36V; (6)HYS: -0.3V to 4V; (7)Storage Temperature: -65 to +150℃; (8)Lead Temperature, Vapor Phase (60sec): 215℃; Infrared (15sec): 220℃; (9)ESD Rating: 2.5kV.

Features

LM3401MMX/NOPB features: (1)Hysteretic Control for Speed and Simplicity; (2)Input Operating Range of 4.5V-35V; (3)1.5MHz maximum switching frequency; (4)Low 200mV reference voltage; (5)Programmable current limit; (6)High speed CMOS compatible enable/dimming; (7)Adjustable hysteresis; (8)Input UVLO; (9)No output capacitor required; (10)MSOP-8 package.
