Product Summary
The INA106KP is a monolithic Gain = 10 differential amplifier consisting of a precision op amp and on-chip metal film resistors. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The applications of the INA106KP are (1)G = 10 differential amplifier; (2)G = +10 amplifier; (3)G = –10 amplifier; (4)G = +11 amplifier; (5)instrumentation amplifier.
Parametrics
INA106KP absolute maximum ratings: (1)Power Supply Voltage: ±18V; (2)Input Voltage Range: ±VS; (3)Operating Temperature Range: P, U: –40 to +85℃; (4)Storage Temperature Range: –40 to +85℃; (5)Lead Temperature (soldering, 10s): +300℃; (6)Wave Soldering (3s, max) U: +260℃; (7)Output Short Circuit to Common: Continuous.
Features
INA106KP features: (1)accurate gain: ±0.025% max; (2)high common-mode rejection: 86dB min; (3)nonlinearity: 0.001% max; (4)easy to use; (5)plastic 8-PIN DIP, SO-8 SOIC packages.

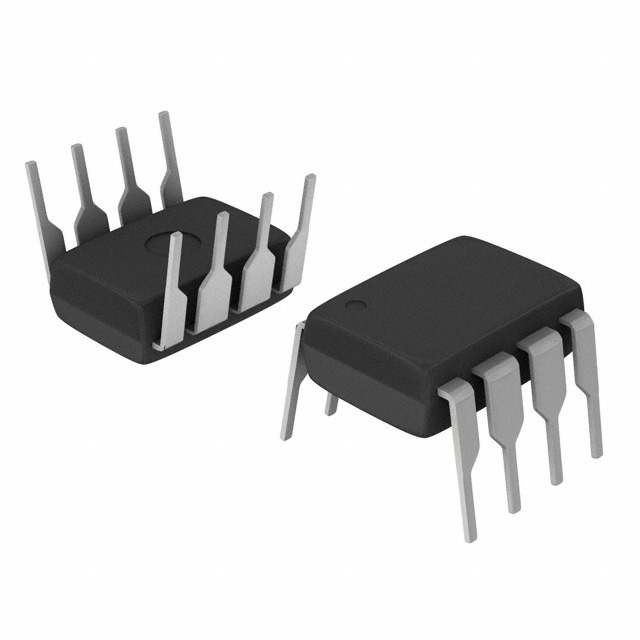

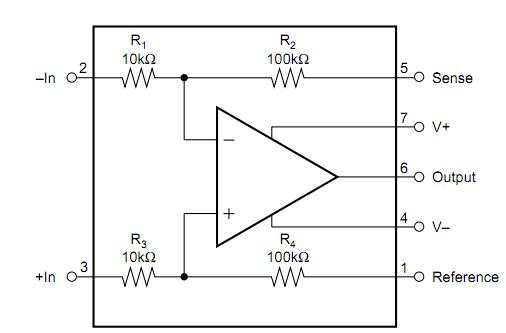

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
INA106KP |
Texas Instruments |
Differential Amplifiers Precision Fixed-Gain |
Data Sheet |
|
|
|||||||||||||
INA106KPG4 |
Texas Instruments |
Differential Amplifiers Precision Fixed-Gain |
Data Sheet |
|
|
