Product Summary
The INA101HP is a high accuracy instrumentation amplifier designed for low-level signal amplification and general purpose data acquisition. Three precision op amps and laser-trimmed metal film resistors are integrated on a single monolithic integrated circuit. The applications of the INA101HP include strain gages, thermocouples, rtds, remote transducers, low-level signals and medical instrumentation.
Parametrics
INA101HP absoltue maximum ratings: (1)Supply Voltage: ±20V; (2)Power Dissipation: 600mW; (3)Input Voltage Range: ±VCC; (4)Output Short Circuit (to ground): Continuous; (5)Operating Temperature: –55 to +125℃; (6)Storage Temperature: –65 to +150℃; (7)Lead Temperature (soldering, 10s): +300℃; (8)Lead Temperature (wave soldering, 3s): +260℃.
Features

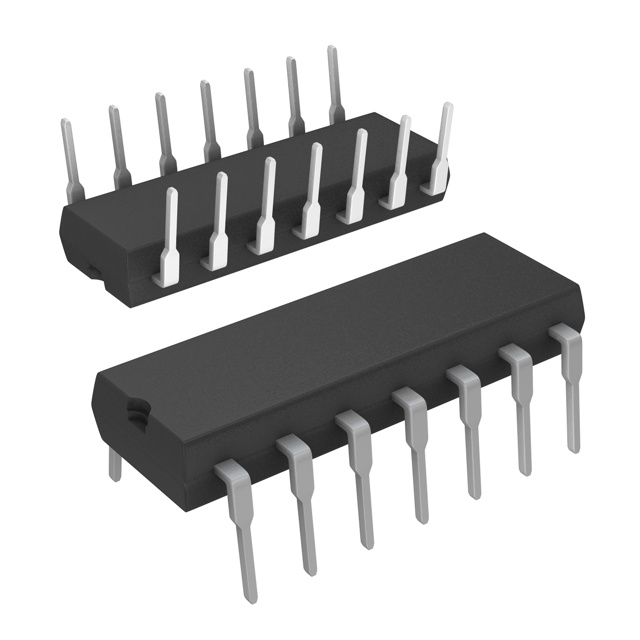

INA101HP features: (1)low drift: 0.25μV/℃ max; (2)low offset voltage: 25μV max; (3)low nonlinearity: 0.002%; (4)low noise: 13nV/Hz; (5)high CMR: 106dB AT 60Hz; (6)high input impedance: 1010?; (7)14-Pin plastic, ceramic DIP, SOL-16, and TO-100 packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 INA101HP |
Texas Instruments |
Instrumentation Amplifiers Very High Accuracy Instrumentation Amp |
Data Sheet |
|
|
||||||||||||
|
INA101HPG4 |
Texas Instruments |
Instrumentation Amplifiers Very High Accuracy Instrumentation Amp |
Data Sheet |
|
|
||||||||||||
