DS80C320-ECG+

high-speed/low-power microcontroller, 33MHZ, 44PLCC, 2.7 to 5.5 V, 10 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.19~7.39 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.19~7.39

PartNumber:: DS80C320-ECG+

Brand:: Dallas Semiconductor - Maxim | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DS80C320-ECG+
US $3.19 - 7.39
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

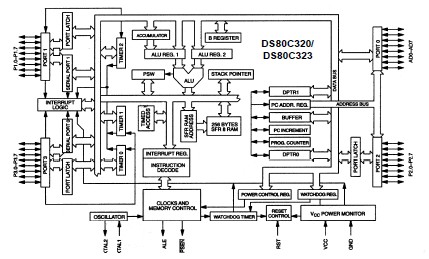

Product Summary

The DS80C320-ECG+ is a high-speed/low-power microcontroller. Wasted clock and memory cycles have been removed using a redesigned processor core. As a result, every 8051 instruction is executed between 1.5 and 3 times faster than the original for the same crystal speed. Typical applications see a speed improvement of 2.5 times using the same code and same crystal. The DS80C320-ECG+ offers a maximum crystal rate of 33MHz, resulting in apparent execution speeds of 82.5MHz(approximately 2.5X).

Parametrics

DS80C320-ECG+ absolute maximum ratings: (1)Operating Supply Voltage VCC: 2.7 to 5.5 V; (2)Power-Fail Warning Voltage VPFW: 2.6 to 2.8 V; (3)Minimum Operating Voltage VRST: 2.5 to 2.7 V 1, 12; (4)Supply Current Active Mode at 18MHz ICC: 10 mA; (5)Supply Current Idle Mode at 18MHz IIDLE: 6 mA; (6)Bandgap Reference Disabled ISTOP: 0.1 μA; (7)Supply Current Stop Mode, Bandgap Reference Enabled ISPBG: 40 μA 4, 10; (8)Input Low Level VIL: -0.3 to +0.2 x VCC V.

Features

DS80C320-ECG+ features: (1)80C32-Compatible; (2)High-Speed Architecture; (3)High-Integration Controller; (4)Two Full-Duplex Hardware Serial Ports; (5)13 Total Interrupt Sources with Six External; (6)Available in 40-Pin DIP, 44-Pin PLCC, and 44-Pin TQFP.
