DS75453M

DS75453M, Dual Peripheral Driver, 8-DIP, 7V, 300mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.89~6.99 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.89~6.99

PartNumber:: DS75453M

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DS75453M
US $0.89 - 6.99
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

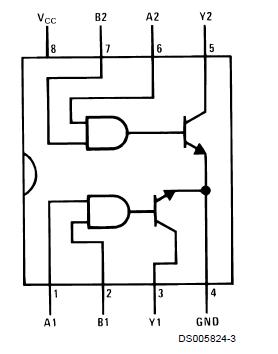

The DS75453M is a dual peripheral driver. The DS75453M is a versatile device designed for use in systems that use TTL logic. Typical applications include high speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, bus drivers and memory drivers. The DS75453M is a dual peripheral NAND driver, respectively, (positive logic) with the output of the logic gates internally connected to the bases of the NPN output transistors.

Parametrics

DS75453M absolute maximum ratings: (1)Supply Voltage, (VCC): 7.0V; (2)Input Voltage: 5.5V; (3)Inter-Emitter Voltage: 5.5V; (4)Output Voltage: 30V; (5)Output Current: 300 mA; (6)Maximum Power Dissipation at 25℃; Molded DIP Package: 957 mW; SO Package: 632 mW; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 4 sec.): 260℃.

Features

DS75453M features: (1)300 mA output current capability; (2)High voltage outputs; (3)No output latch-up at 20V; (4)High speed switching; (5)Choice of logic function; (6)TTL compatible diode-clamped inputs; (7)Standard supply voltages; (8)Replaces TI “A” and “B” series.
