DS1307ZN

DIP, 64 X 8, serial real time clock, low power, 7.0V, 500 nA, 8-pin

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.41~1.29 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.41~1.29

PartNumber:: DS1307ZN

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DS1307ZN
US $0.41 - 1.29
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

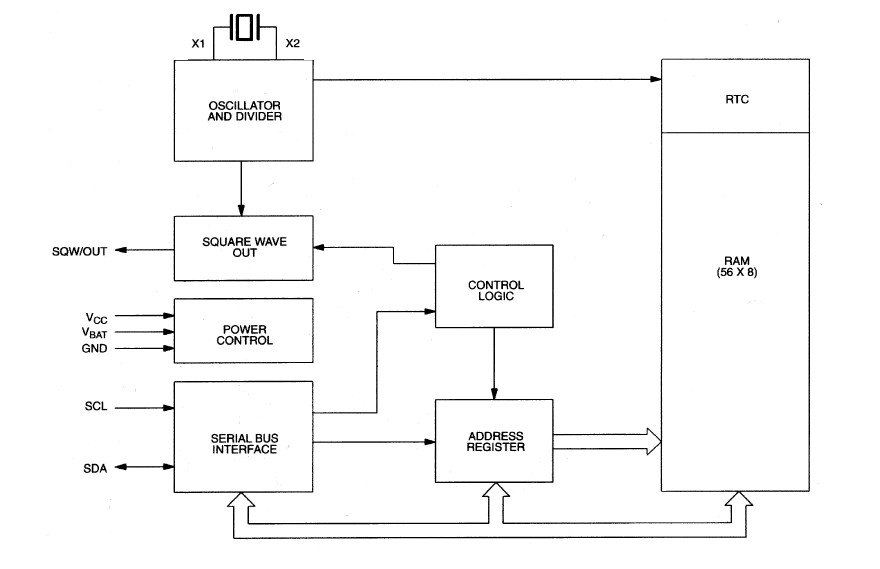

The DS1307ZN is a 64 X 8 serial real time clock. The DS1307 Serial Real Time Clock is a low power, full BCD clock/calendar plus 56 bytes of nonvolatile SRAM. Address and data are transferred serially via a 2-wire bi-directional bus. The clock/calendar of the DS1307 provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with less than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. The DS1307ZN has a built-in power sense circuit which detects power failures and automatically switches to the battery supply.

Parametrics

DS1307ZN absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.5V to +7.0V; (2)Operating Temperature: 0℃ to 70℃ (-40℃ to 85℃ for industrial); (3)Storage Temperature: -55℃ to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds DIP.

Features

DS1307ZN features: (1)56 byte nonvolatile RAM for data storage; (2)2-wire serial interface; (3)Programmable squarewave output signal; (4)Automatic power-fail detect and switch circuitry; (5)Consumes less than 500 nA in battery backup mode with oscillator running; (6)Optional industrial temperature range -40 to +85℃; (7)Available in 8-pin DIP or SOIC; (8)Recognized by Underwriters Laboratory.
