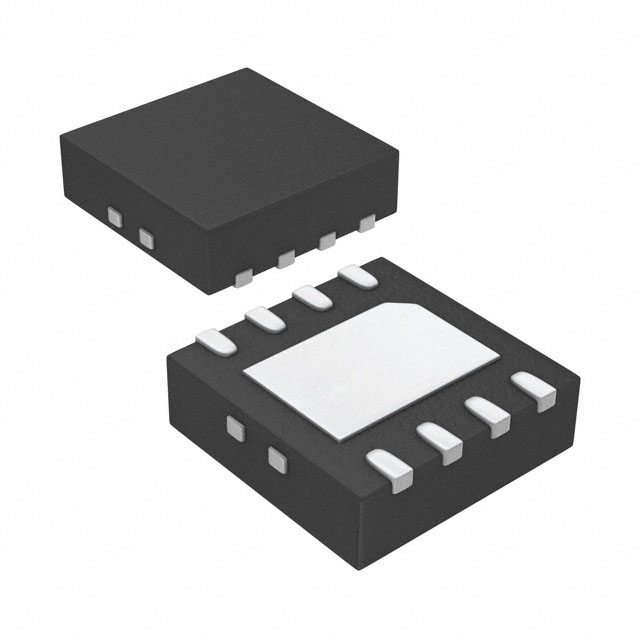

Product Summary

The DAC8811IBDRBT is a multiplying digital-to-analog converter (DAC). It is designed to operate from a single 2.7-V to 5.5-V supply. The applications of the DAC8811IBDRBT are (1)Automatic Test Equipment; (2)Instrumentation; (3)Digitally Controlled Calibration; (4)Industrial Control PLCs.

Parametrics

DAC8811IBDRBT absolute maximum ratings: (1)V DD to GND: -0.3 to +7 V; (2)Digital input voltage to GND: -0.3 to +V DD + 0.3 V; (3)V (I OUT ) to GND: -0.3 to +V DD + 0.3 V; (4)Operating temperature range: -40 to +105℃; (5)Storage temperature range: -65 to +150℃; (6)Junction temperature range (T J max): +125℃; (7)Lead temperature, soldering Vapor phase (60s): 215℃; (8)Lead temperature, soldering Infrared (15s): 220℃; (9)ESD rating, HBM: 1500 V; (10)ESD rating, CDM: 1000 V.

Features

DAC8811IBDRBT features: (1)± 0.5 LSB DNL; (2)16-Bit Monotonic; (3)± 1 LSB INL; (4)Low Noise: 12 nV/ Hz; (5)Low Power: I DD = 2 μ A; (6)+2.7 V to +5.5 V Analog Power Supply; (7)2 mA Full-Scale Current ± 20%, with V REF = 10 V; (8)50-MHz Serial Interface; (9)0.5 μ s Settling Time; (10)4-Quadrant Multiplying Reference; (11)Reference Bandwidth: 10 MHz; (12)± 10 V Reference Input; (13)Reference Dynamics: -105 THD; (14)Tiny 8-Lead 3 × 3 mm SON and 3 × 5 mm MSOP Packages; (15)Industry-Standard Pin Configuration.

Diagrams

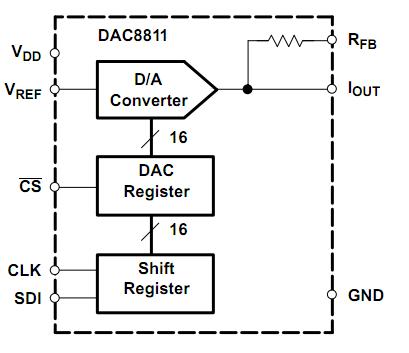

DAC8811IBDRBT block diagram
